TC16160

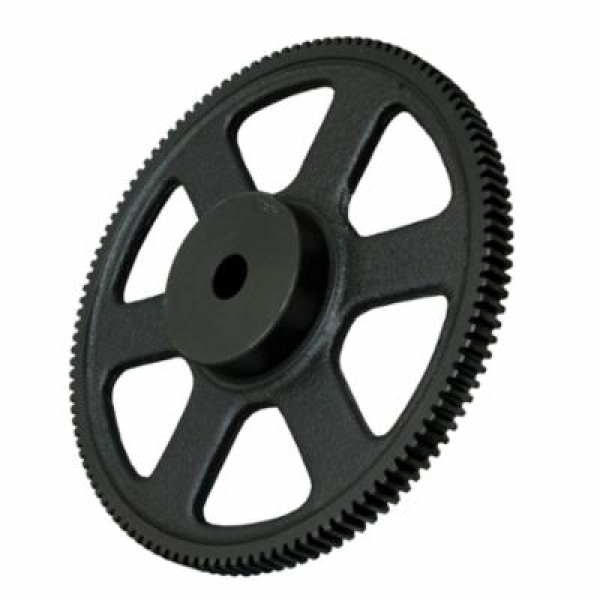

Martin TC16160 External Tooth Reborable Stock Spur Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 3/4 in W Face, 160 Teeth, 3.827 in Dia Pitch, 0.875 to 1.688 in Dia Bore, Cast Iron
- CP#:
- Item#: TC16160
- Mfr#: TC16160
- UPC: 697950293943
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 0.875 to 1.688 in Bore Dia, 10-1/8 in Outside Dia, 160 Teeth, 16 Diametral Pitch, 3.827 in, 3/4 in Face Width, Type B3, 2-3/4 in Hub Dia, 3/4 in Hub Projection, 1-1/2 in Overall Length, 20 deg Pressure Angle, Cast Iron
SPECIFICATIONS
| Hub Diameter | : | 2-3/4 in |
| Hub Projection | : | 3/4 in |
| Hub Type | : | Type B3 |
| Outside Diameter | : | 10-1/8 in |
| Overall Length | : | 1-1/2 in |
| Type | : | External Tooth Reborable |
| Diametral Pitch | : | 16 |
| Pressure Angle | : | 20 deg |
| Face Width | : | 3/4 in |
| Number of Teeth | : | 160 |
| Pitch Diameter | : | 3.827 in |
| Bore Diameter | : | 0.875 to 1.688 in |
| Material | : | Cast Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S1011_Catalog.pdf
