TB60L050

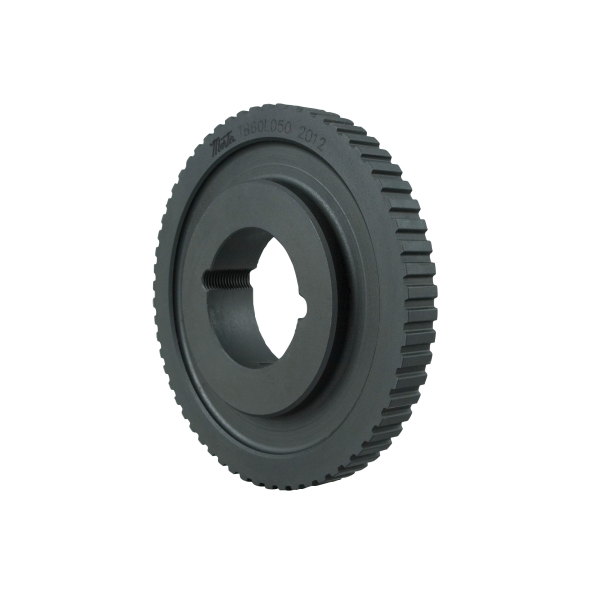

Martin TB60L050 Type C-2 Web Stock Timing Pulley, 1/2 to 2 in TB Bushed Bore, 7.132 in OD, 60 Grooves, 7.162 in Dia Pitch, 3/4 in W Face
- CP#:
- Item#: TB60L050
- Mfr#: TB60L050
- UPC: 697950084060
- Non-slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Type C-2 Web, TB Bushed Bore, 1/2 to 2 in Bore Dia, 7.132 in Outside Dia, 7.162 in, 60 Grooves, 3/8 in Pitch, 3/4 in Face Width, 4-3/8 in Hub Dia, 1/4 in Hub Projection, 2012 Bushing, 1-1/4 in Overall Length, For Use With: 1/2 in W Type L Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 1-1/4 in |
| Pitch | : | 3/8 in |
| Material | : | Cast Iron |
| Bushing Type | : | 2012 |
| Bore Diameter | : | 1/2 to 2 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 7.132 in |
| Number of Grooves | : | 60 |
| Pitch Diameter | : | 7.162 in |
| Face Width | : | 3/4 in |
| Hub Diameter | : | 4-3/8 in |
| Type | : | Type C-2 Web |
| Hub Projection | : | 1/4 in |
| Suitable For Use With | : | 1/2 in W Type L Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_TB60L050_Catalog.pdf
