TB40XH200

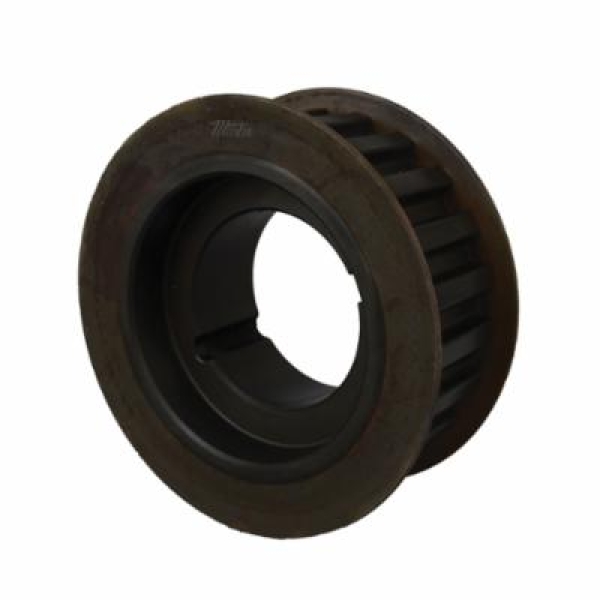

Martin TB40XH200 Solid Type CF-1 Stock Timing Pulley, 1.438 to 4 in TB Bushed Bore, 11.031 in OD, 40 Grooves, 11.141 in Dia Pitch, 2-1/4 in W Face

  • Item#: TB40XH200
  • Mfr#: TB40XH200
  • UPC: 697950083919
    • Exhibit many of the best features of chain drives and belt drives
    • No lubrication needed
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type CF-1, TB Bushed Bore, 1.438 to 4 in Bore Dia, 11.031 in Outside Dia, 11.141 in, 40 Grooves, 7/8 in Pitch, 2-1/4 in Face Width, 11.687 in Flange Dia, 8-1/2 in Hub Dia, 4040 Bushing, 4 in Overall Length, For Use With: 2 in W Type XH Belt, Cast Iron

SPECIFICATIONS

Overall Length      :      4 in
Pitch      :      7/8 in
Material      :      Cast Iron
Bushing Type      :      4040
Bore Diameter      :      1.438 to 4 in
Bore Type      :      TB Bushed
Outside Diameter      :      11.031 in
Number of Grooves      :      40
Pitch Diameter      :      11.141 in
Face Width      :      2-1/4 in
Hub Diameter      :      8-1/2 in
Type      :      Solid Type CF-1
Flange Diameter      :      11.687 in
Suitable For Use With      :      2 in W Type XH Belt
