TB32XH300

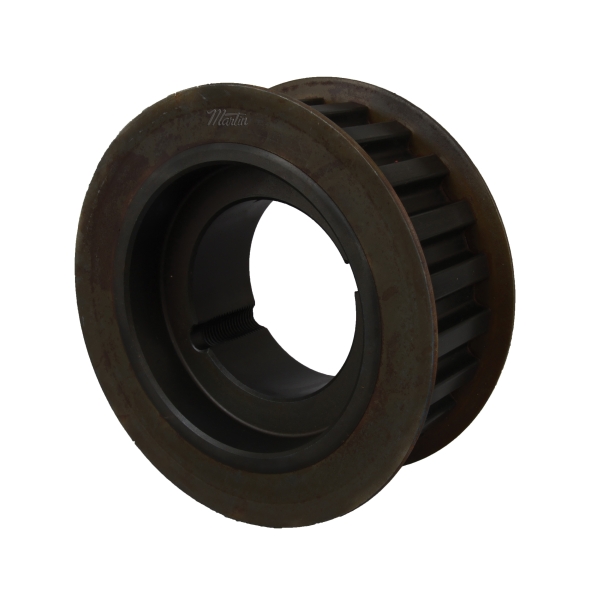

Martin TB32XH300 Solid Type KF-1 Stock Timing Pulley, 1-3/16 to 3-1/2 in TB Bushed Bore, 8.803 in OD, 32 Grooves, 8.913 in Dia Pitch, 3-5/8 in W Face
- CP#:
- Item#: TB32XH300
- Mfr#: TB32XH300
- UPC: 697950083834
- Non-slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type KF-1, TB Bushed Bore, 1-3/16 to 3-1/2 in Bore Dia, 8.803 in Outside Dia, 8.913 in, 32 Grooves, 7/8 in Pitch, 3-5/8 in Face Width, 9-33/64 in Flange Dia, 1/8 in Hub Projection, 3535 Bushing, 3-1/2 in Overall Length, For Use With: 3 in W Type XH Belt, Cast Iron
SPECIFICATIONS
| Overall Length | : | 3-1/2 in |
| Pitch | : | 7/8 in |
| Material | : | Cast Iron |
| Bushing Type | : | 3535 |
| Bore Diameter | : | 1-3/16 to 3-1/2 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 8.803 in |
| Number of Grooves | : | 32 |
| Pitch Diameter | : | 8.913 in |
| Face Width | : | 3-5/8 in |
| Type | : | Solid Type KF-1 |
| Hub Projection | : | 1/8 in |
| Flange Diameter | : | 9-33/64 in |
| Suitable For Use With | : | 3 in W Type XH Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_TB60L050_Catalog.pdf
