TB22L100

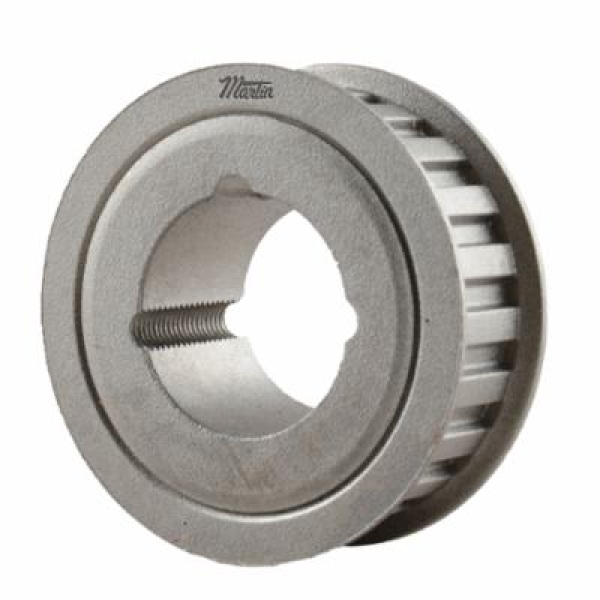

Martin TB22L100 Solid Type KF-1 Stock Timing Pulley, 1/2 to 1 in TB Bushed Bore, 2.596 in OD, 22 Grooves, 2.626 in Dia Pitch, 1.063 in W Face

  • Item#: TB22L100
  • Mfr#: TB22L100
  • UPC: 697950083360
    • Exhibit many of the best features of chain drives and belt drives
    • No lubrication needed
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Solid Type KF-1, TB Bushed Bore, 1/2 to 1 in Bore Dia, 2.596 in Outside Dia, 2.626 in, 22 Grooves, 3/8 in Pitch, 1.063 in Face Width, 2.852 in Flange Dia, 1008 Bushing, 7/8 in Overall Length, For Use With: 1 in W Type L Belt, Steel

SPECIFICATIONS

Overall Length      :      7/8 in
Pitch      :      3/8 in
Material      :      Steel
Bushing Type      :      1008
Bore Diameter      :      1/2 to 1 in
Bore Type      :      TB Bushed
Outside Diameter      :      2.596 in
Number of Grooves      :      22
Pitch Diameter      :      2.626 in
Face Width      :      1.063 in
Type      :      Solid Type KF-1
Flange Diameter      :      2.852 in
Suitable For Use With      :      1 in W Type L Belt

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
