TB20H150

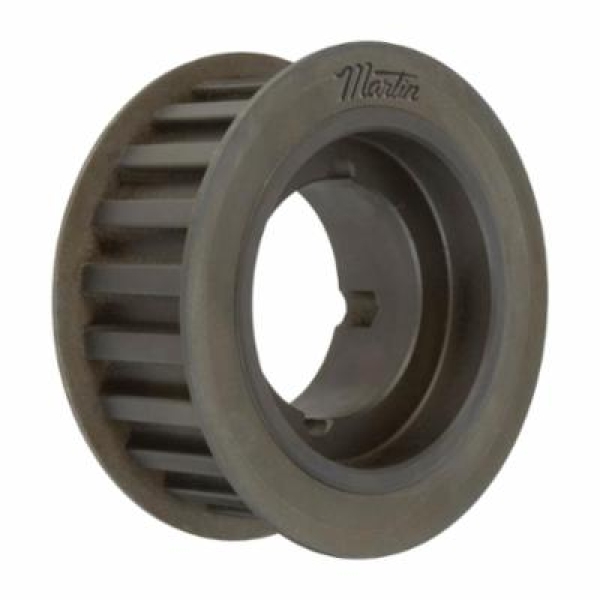

Martin TB20H150 Solid Type KF-1 Stock Timing Pulley, 1/2 to 1-1/4 in TB Bushed Bore, 3.129 in OD, 20 Grooves, 3.183 in Dia Pitch, 1.563 in W Face
- CP#:
- Item#: TB20H150
- Mfr#: TB20H150
- UPC: 697950083247
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type KF-1, TB Bushed Bore, 1/2 to 1-1/4 in Bore Dia, 3.129 in Outside Dia, 3.183 in, 20 Grooves, 1/2 in Pitch, 1.563 in Face Width, 3.415 in Flange Dia, 1215 Bushing, 1-1/2 in Overall Length, For Use With: 3 in W Type H Belt, Steel
SPECIFICATIONS
| Overall Length | : | 1-1/2 in |
| Pitch | : | 1/2 in |
| Material | : | Steel |
| Bushing Type | : | 1215 |
| Bore Diameter | : | 1/2 to 1-1/4 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 3.129 in |
| Number of Grooves | : | 20 |
| Pitch Diameter | : | 3.183 in |
| Face Width | : | 1.563 in |
| Type | : | Solid Type KF-1 |
| Flange Diameter | : | 3.415 in |
| Suitable For Use With | : | 3 in W Type H Belt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10L050_Catalog.pdf
