SPH-30 S/B

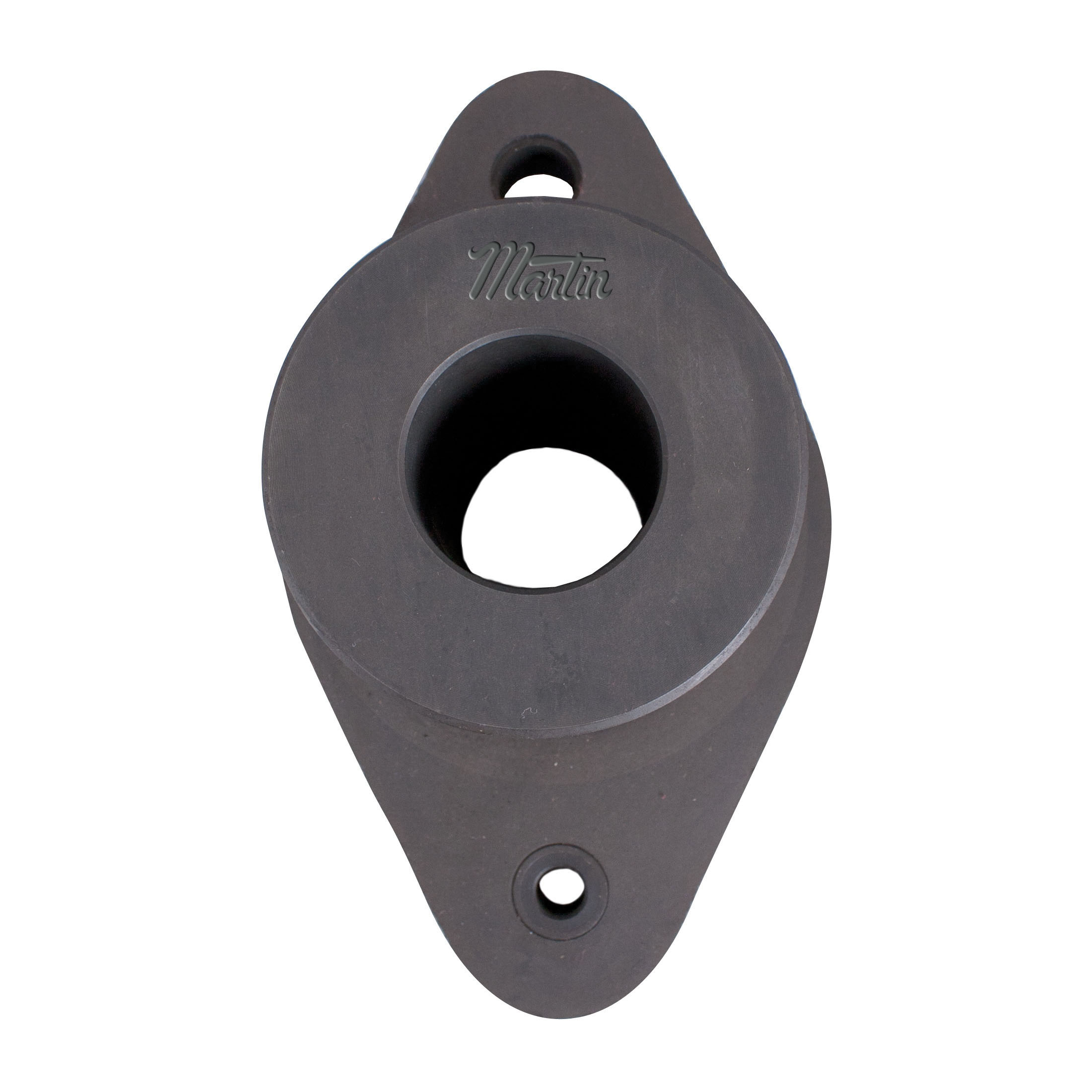

Martin SPH-30 S/B Shear Pin Hub, 5-1/16 to 5-1/2 in Dia Bore, 9-3/4 in Dia Hub, 20-1/4 in OD Flange, 11-11/16 in L Through Bore
- CP#:
- Item#: SPH-30 S/B
- Mfr#: SPH-30 S/B
- UPC: 697950049731
- Torque is transmitted by a single pin, necked to shear when the safe load is exceeded
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Shear pin sprockets provide simple, dependable protection against expensive machinery damage caused by overloads or jamming. Torque is transmitted by a single pin, necked to shear when the safe load is exceeded. When an overload occurs the pin shears, disconnecting the drive immediately.
Martin Shear Pin Hub, 5-1/16 to 5-1/2 in Bore, 9-3/4 in Diameter Hub, 20-1/4 in OD Flange, 11-11/16 in Length Through Bore, 1 in Bolt, 6 Bolt Holes, Cast Iron
SPECIFICATIONS
| Bolt Size | : | 1 in |
| Material | : | Cast Iron |
| Number of Bolt Holes | : | 6 |
| Bore Diameter | : | 5-1/16 to 5-1/2 in |
| Hub Diameter | : | 9-3/4 in |
| Flange Outside Diameter | : | 20-1/4 in |
| Length Through Bore | : | 11-11/16 in |
