SHL110

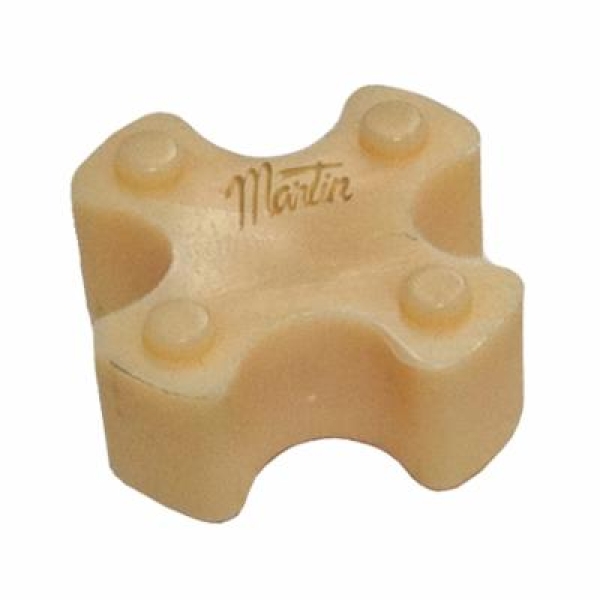

Martin SHL110 One-Piece Jaw Coupling Spider, 110 Coupling, 0.89 in L, 3.312 in OD, 3600 rpm Max, Hytrel®
- CP#:
- Item#: SHL110
- Mfr#: SHL110
- UPC: 697950064161
- Available in the following materials: Buna-N (rubber), Hytrel, Urethane and Bronze
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include no lubrication, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and urethane spiders are stocked in all branches.
Martin Jaw Coupling Spider, One-Piece, Series: SHL, 110 Coupling, 0.89 in Length, 1/2 to 1-5/8 in ID, 3.312 in OD, Curved Jaw, 1.6 (MS)/22681.2 (ML) in-lb Torque, 3600 rpm Maximum, 6 Bolts, For Use With: ML and MS Series Flexible Jaw Coupling, -65 to 275 deg F, Hytrel®
SPECIFICATIONS
| Type | : | One-Piece |
| Series | : | SHL |
| Inside Diameter | : | 1/2 to 1-5/8 in |
| Outside Diameter | : | 3.312 in |
| Material | : | Hytrel® |
| Torque Rating | : | 1.6 (MS)/22681.2 (ML) in-lb |
| Suitable For Use With | : | ML and MS Series Flexible Jaw Coupling |
| Number of Bolts | : | 6 |
| Temperature Rating | : | -65 to 275 deg F |
| Jaw Type | : | Curved |
| Coupling Size | : | 110 |
| Length | : | 0.89 in |
| Maximum Speed | : | 3600 rpm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_SBL070_Specification_Sheet.pdf
