SH-BB

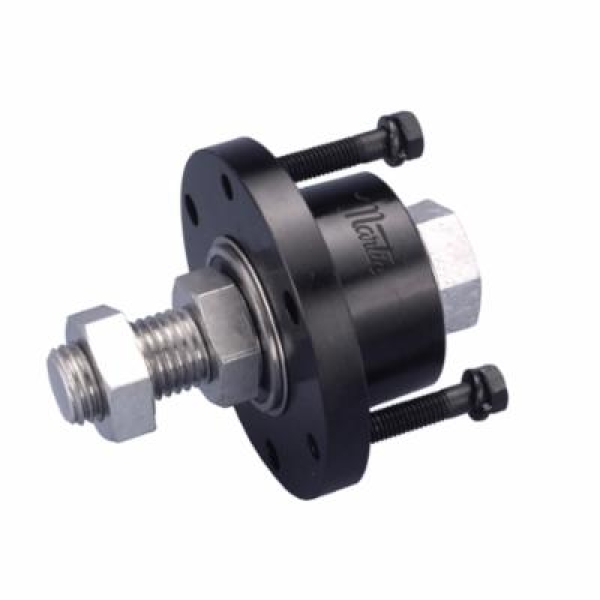

Martin SH-BB QD Idler Bushing, 1.259 in Dia Bore, 1.871 in Dia Barrel, 2.688 in Dia Flange, 3-1/16 in OAL, Steel
- CP#:
- Item#: SH-BB
- Mfr#: SH-BB
- UPC: 697950262314
- Size SH bushing
- They are equipped with two electric motor grade, permanently lubricated ball bearings, mounted on a precision shoulder bolt
- Installation is made by slipping the threaded shaft through a hole bored in support structure and tightening the locking nut
- Sheaves, sprockets or other products can be removed without dismounting the idler bushing
- Designed for conventional mounting or reverse mounting
- Bushings have a flange
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ QD bushings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Idler Bushing, 1.259 in Bore Dia, 1.871 in Barrel Dia, 2-1/4 in Bolt Circle, 2.688 in Flange Dia, 0.38 in Flange Thickness, 1/4-20 Screw, Ball Bearing, 3320 lb Radial Load, 3-1/16 in Overall Length, Steel
SPECIFICATIONS
| Flange Thickness | : | 0.38 in |
| Bore Diameter | : | 1.259 in |
| Overall Length | : | 3-1/16 in |
| Material | : | Steel |
| Screw Size | : | 1/4-20 |
| Bolt Circle Diameter | : | 2-1/4 in |
| Bearing Type | : | Ball |
| Radial Load Capacity | : | 3320 lb |
| Barrel Diameter | : | 1.871 in |
| Flange Diameter | : | 2.688 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_E-BB_Catalog.pdf
