- Martin S615BS 1 3/16
S615BS 1 3/16

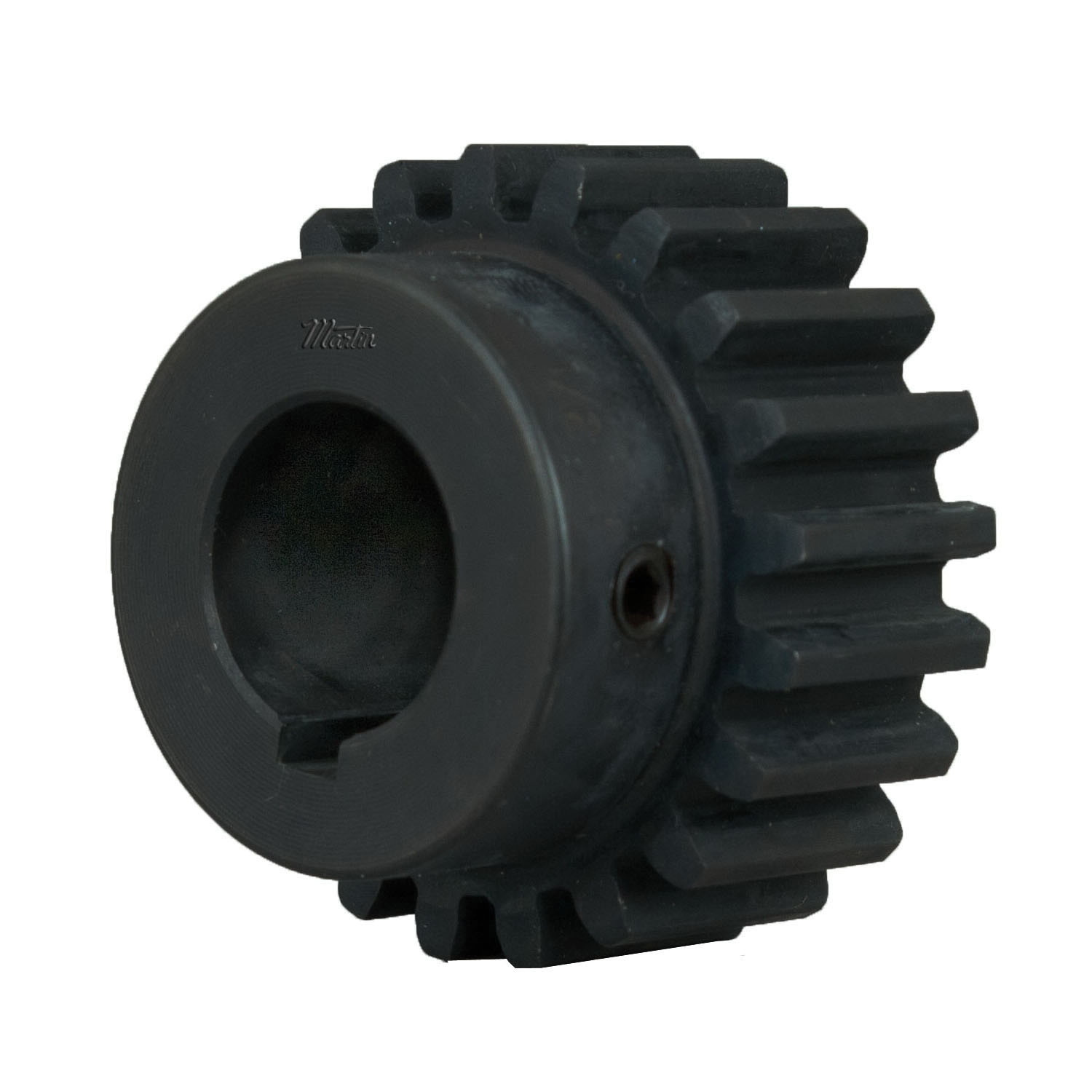

Martin S615BS 1 3/16 Bored-to-Size External Tooth Spur Gear, 6 Diametral Pitch, 14-1/2 deg Pressure Angle, 1-1/2 in W Face, 15 Teeth, 2-1/2 in Dia Pitch, 1.188 in Dia Bore, Cast Iron
- CP#:
- Item#: S615BS 1 3/16
- Mfr#: S615BS 1 3/16
- UPC: 697950439907
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock Spur Gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes and spoke cast gears are machined on all operating surfaces. Martin cast gears are cast with larger hub to provide extra strength and to allow for larger bores.
Martin Spur Gear, Bored-to-Size External Tooth, 1.188 in Bore, 2.833 in OD, 15 Teeth, 6 Diametral Pitch, 2-1/2 in Pitch Diameter, 1-1/2 in Face Width, Type B Hub, 2 in Diameter Hub, 7/8 in Hub Projection, 14-1/2 deg Pressure Angle, 1/4 x 1/8 in Keyway, Cast Iron
SPECIFICATIONS
| Hub Diameter | : | 2 in |
| Hub Projection | : | 7/8 in |
| Hub Type | : | Type B |
| Keyway Size | : | 1/4 x 1/8 in |
| Outside Diameter | : | 2.833 in |
| Type | : | Bored-to-Size External Tooth |
| Diametral Pitch | : | 6 |
| Pressure Angle | : | 14-1/2 deg |
| Face Width | : | 1-1/2 in |
| Number of Teeth | : | 15 |
| Pitch Diameter | : | 2-1/2 in |
| Bore Diameter | : | 1.188 in |
| Material | : | Cast Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C648_Catalog.pdf
