R20X4

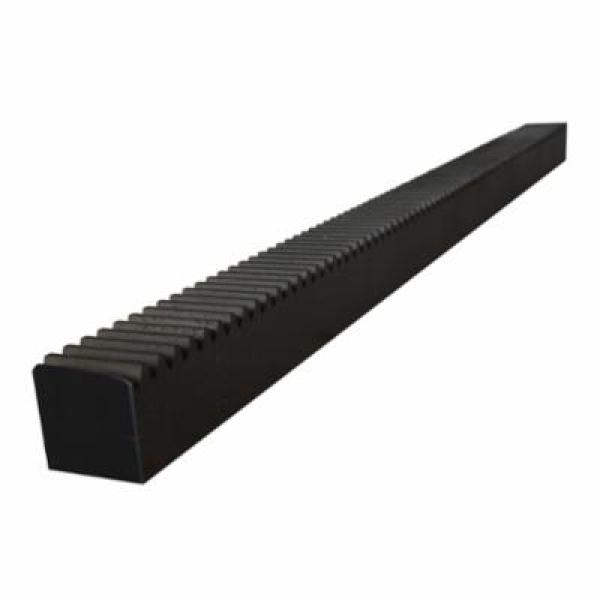

Martin R20X4 Standard Face Machined Gear Rack, 20 Diametral Pitch, 14.5 deg Pressure Angle, 3/8 in W Face, 48 in OAL, 0.325 in, Steel
- CP#:
- Item#: R20X4
- Mfr#: R20X4
- UPC: 697950059785
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin rack is made from low carbon cold drawn steel. It is available in 14-1/2 deg and 20 deg pressure angle in 2, 4, and 6 ft lengths. Allowance is made for cutting and machining. Pinions to run with the rack may be selected from the spur gear section of the catalog. Special rack can be supplied in other materials, sizes, and pitches. Each Martin facility can mill and match rack for longer continuous runs.
Martin Machined Gear Rack, Standard Face, 3/8 in Face Width, 20 Diametral Pitch, 0.325 in Pitch Line to Back, 48 in Overall Length, 3/8 in Overall Thickness, 14.5 deg Pressure Angle, Steel
SPECIFICATIONS
| Overall Thickness | : | 3/8 in |
| Type | : | Standard Face |
| Diametral Pitch | : | 20 |
| Pressure Angle | : | 14.5 deg |
| Face Width | : | 3/8 in |
| Overall Length | : | 48 in |
| Pitch Line to Back | : | 0.325 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_R10X2_Catalog.pdf
