Q1-BB 3/4

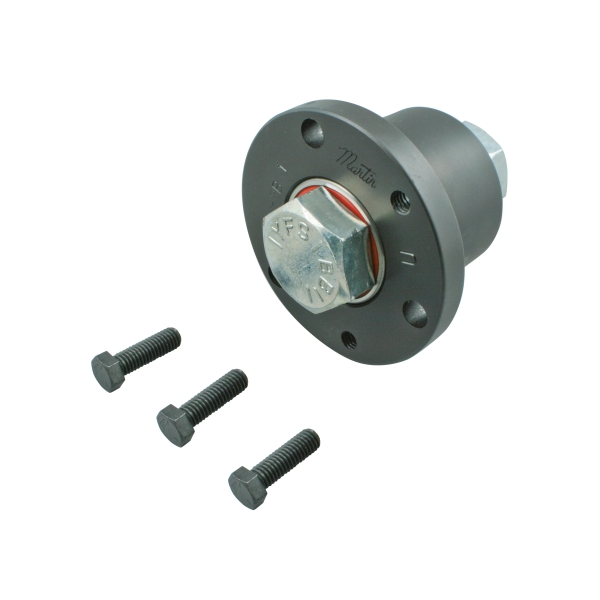

Martin Q1-BB 3/4 MST Idler Bushing, 3/4 in Dia Bore, 2-7/8 in Dia Barrel, 4-1/8 in Dia Flange, 4-7/32 in OAL, Ductile Iron
- CP#:
- Item#: Q1-BB 3/4
- Mfr#: Q1-BB 3/4
- UPC: 697950934228
- Tolerances meet or exceed industry guidelines and standards
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin idler bushings are designed to accommodate stock V-belt drives, sprockets, timing belt pulleys, or other products that use QD or MST® type bushings. They are equipped with two electric motor grade, permanently lubricated ball bearings, mounted on a precision shoulder bolt. Shoulder bolt and two hex jam nuts are zinc plated. Installation is made by slipping the threaded shaft through a hole bored in support structure and tightening the locking nut. Sheaves, sprockets or other products can be removed without dismounting the idler bushing.
Martin MST Idler Bushing, 3/4 in Bore Dia, 2-7/8 in Barrel Dia, 4-1/8 in Flange Dia, 17/32 in Flange Thickness, 5 Bolt Holes, 3/8 x 1-1/4 in Screw, Ball Bearing, 1024 lb at 1200 rpm/1088 lb at 1000 rpm/1371 lb at 500 rpm/2344 lb at 100 rpm/894 lb at 1800 rpm Radial Load, 4-7/32 in Overall Length, -40 to 248 deg F, Ductile Iron
SPECIFICATIONS
| Flange Thickness | : | 17/32 in |
| Bore Diameter | : | 3/4 in |
| Overall Length | : | 4-7/32 in |
| Material | : | Ductile Iron |
| Bearing Type | : | Ball |
| Temperature Rating | : | -40 to 248 deg F |
| Screw Size | : | 3/8 x 1-1/4 in |
| Number of Bolt Holes | : | 5 |
| Radial Load Capacity | : | 1024 lb at 1200 rpm/1088 lb at 1000 rpm/1371 lb at 500 rpm/2344 lb at 100 rpm/894 lb at 1800 rpm |
| Barrel Diameter | : | 2-7/8 in |
| Flange Diameter | : | 4-1/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_Q1_BB_3_4_Catalog.pdf
