PGC4

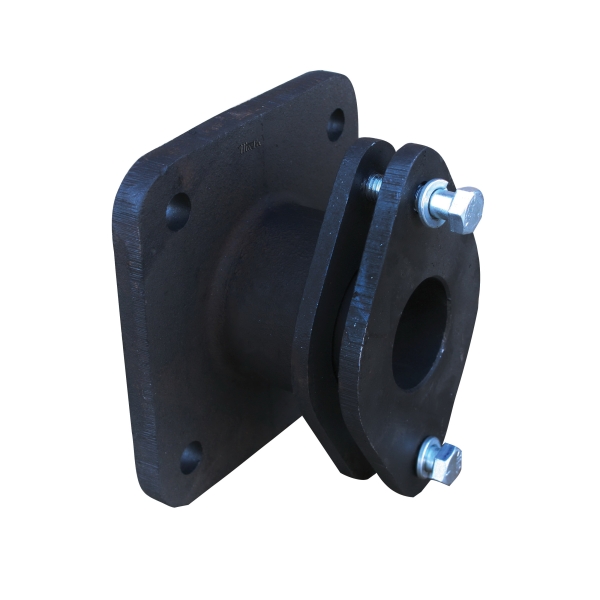

Martin PGC4 Packing Gland Seal, For Use With Screw Conveyor, 2 in Dia Shaft, 5-1/8 in Mounting Bolt Hole Centers, 1/2 in THK Seal Flange, 5/8 in Dia Mounting Bolt, Cast Iron
- CP#:
- Item#: PGC4
- Mfr#: PGC4
- UPC: 697950081632
- Most positive type shaft seal
- Used on pedestal type trough end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Flanged packing gland seals prevent bulk material leaks, which reduces product loss, contamination and bearing failure. This seal consists of an external housing and an internal gland which is forced into the housing to compress the packing. It is the most positive type shaft seal and recommended for use where minor pressure requirements are desired.
Martin Packing Gland Seal, For Use With: Screw Conveyor, 2 in Dia Shaft, 5-1/8 in Mounting Bolt Hole Centers, 1/2 in THK Seal Flange, 5/8 in Dia Mounting Bolt, Cast Iron, 7-1/8 in L
SPECIFICATIONS
| Material | : | Cast Iron |
| Dimensions | : | 7-1/8 in L |
| Suitable For Use With | : | Screw Conveyor |
| Specifications | : | 2 in Dia Shaft, 5-1/8 in Mounting Bolt Hole Centers, 1/2 in THK Seal Flange, 5/8 in Dia Mounting Bolt |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_CSFP2_Catalog.pdf
