P908M50-SF

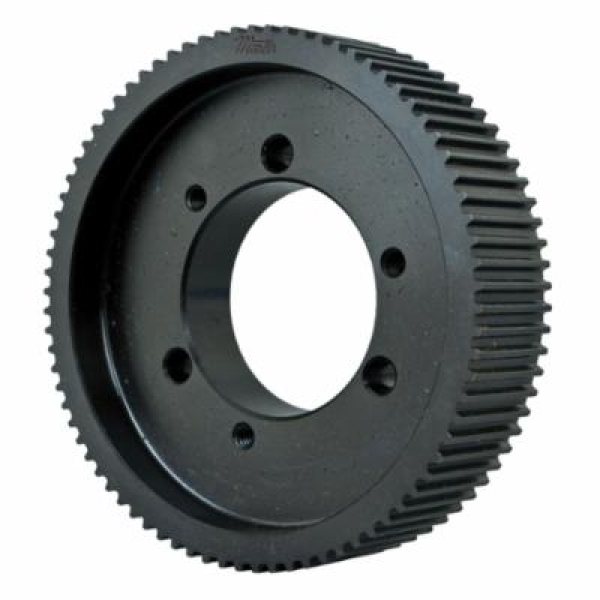

Martin HTS® P908M50-SF Solid Type D-2 High Torque Belt Drive Sprocket, 1/2 to 2-7/8 in QD® Bushed Bore, 8.969 in OD, 90 Grooves, 9.023 in Dia Pitch, 2-3/8 in W Face
- CP#:
- Item#: P908M50-SF
- Mfr#: P908M50-SF
- UPC: 697950783727
- Positive slip proof engagement
- Constant driven speeds
- High tension eliminated
- High mechanical efficiency
- Economical operation
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin HTS® High Torque Belt Drive Sprocket, Solid Type D-2, QD® Bushed Bore, 1/2 to 2-7/8 in Bore Dia, 8.969 in Outside Dia, 9.023 in, 90 Grooves, 8 mm Pitch, 2-3/8 in Face Width, SF Bushing, 1-1/4 in Overall Length, Cast Iron
SPECIFICATIONS
| Bushing Type | : | SF |
| Material | : | Cast Iron |
| Pitch | : | 8 mm |
| Overall Length | : | 1-1/4 in |
| Bore Diameter | : | 1/2 to 2-7/8 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 8.969 in |
| Number of Grooves | : | 90 |
| Pitch Diameter | : | 9.023 in |
| Face Width | : | 2-3/8 in |
| Type | : | Solid Type D-2 |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P228M20-MPB_Catalog.pdf
