P8020M340-P

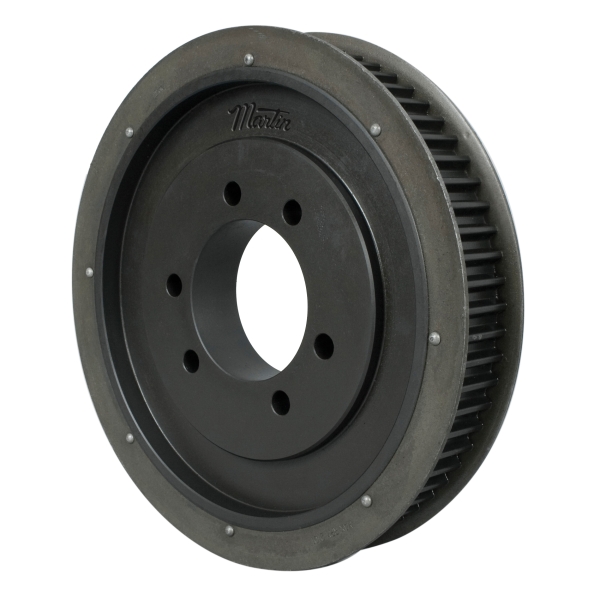

Martin HTS® P8020M340-P Web Type AF-2 High Torque Sprocket, 2.938 to 6.938 in QD® Bushed Bore, 19.8845 in OD, 80 Grooves, 20.051 in Dia Pitch, 14-1/4 in W Face
- CP#:
- Item#: P8020M340-P
- Mfr#: P8020M340-P
- UPC: 697950441948
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Web Type AF-2, QD® Bushed Bore, 2.938 to 6.938 in Bore Dia, 19.8845 in Outside Dia, 20.051 in, 80 Grooves, 0.7874 in Pitch, 14-1/4 in Face Width, 20.866 in Flange Dia, P Bushing, 14-1/4 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Cast Iron
SPECIFICATIONS
| Bushing Type | : | P |
| Material | : | Cast Iron |
| Pitch | : | 0.7874 in |
| Overall Length | : | 14-1/4 in |
| Bore Diameter | : | 2.938 to 6.938 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 19.8845 in |
| Number of Grooves | : | 80 |
| Pitch Diameter | : | 20.051 in |
| Face Width | : | 14-1/4 in |
| Type | : | Web Type AF-2 |
| Flange Diameter | : | 20.866 in |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
