- Martin P648M30-2517
P648M30-2517

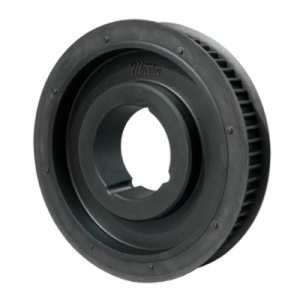

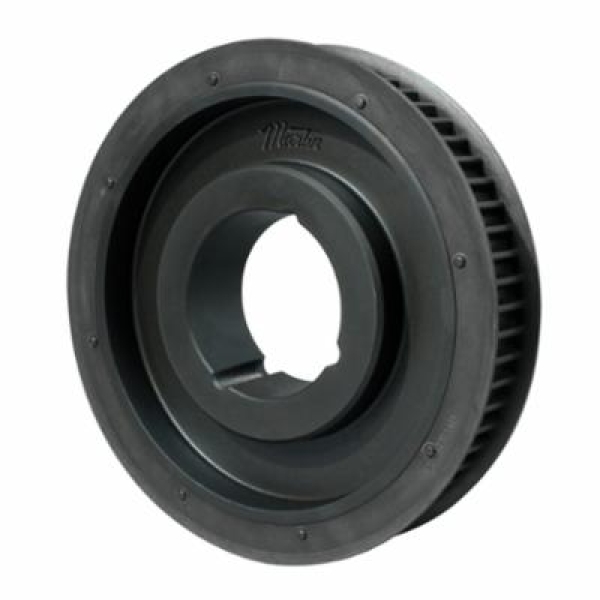

Martin HTS® P648M30-2517 Solid Type CF-1 High Torque Belt Drive Sprocket, 1/2 to 2-1/2 in TB Bushed Bore, 6.362 in OD, 64 Grooves, 6.416 in Dia Pitch, 1-1/2 in W Face
- CP#:
- Item#: P648M30-2517
- Mfr#: P648M30-2517
- UPC: 697950782966
- Positive slip proof engagement
- Constant driven speeds
- High tension eliminated
- High mechanical efficiency
- Economical operation
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin HTS® High Torque Belt Drive Sprocket, Solid Type CF-1, TB Bushed Bore, 1/2 to 2-1/2 in Bore Dia, 6.362 in Outside Dia, 6.416 in, 64 Grooves, 8 mm Pitch, 1-1/2 in Face Width, 6-3/4 in Flange Dia, 2517 Bushing, 1-3/4 in Overall Length, Cast Iron
SPECIFICATIONS
| Bushing Type | : | 2517 |
| Material | : | Cast Iron |
| Pitch | : | 8 mm |
| Overall Length | : | 1-3/4 in |
| Bore Diameter | : | 1/2 to 2-1/2 in |
| Bore Type | : | TB Bushed |
| Outside Diameter | : | 6.362 in |
| Number of Grooves | : | 64 |
| Pitch Diameter | : | 6.416 in |
| Face Width | : | 1-1/2 in |
| Type | : | Solid Type CF-1 |
| Flange Diameter | : | 6-3/4 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P228M20-MPB_Catalog.pdf
