P525M25-JA

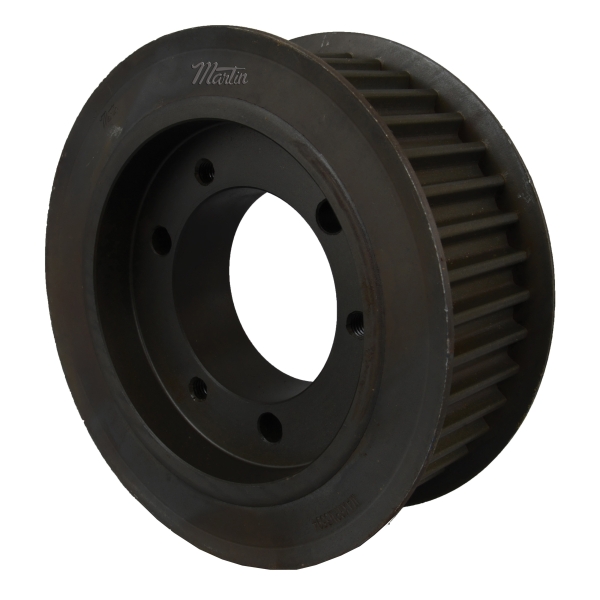

Martin HTS® P525M25-JA Solid Type CF-1 High Torque Sprocket, 3/8 to 1-1/4 in QD® Bushed Bore, 3.215 in OD, 52 Grooves, 3.258 in Dia Pitch, 1.23 in W Face
- CP#:
- Item#: P525M25-JA
- Mfr#: P525M25-JA
- UPC: 697950782485
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Solid Type CF-1, QD® Bushed Bore, 3/8 to 1-1/4 in Bore Dia, 3.215 in Outside Dia, 3.258 in, 52 Grooves, 0.19685 in Pitch, 1.23 in Face Width, 3.41 in Flange Dia, JA Bushing, 1 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Steel
SPECIFICATIONS
| Bushing Type | : | JA |
| Material | : | Steel |
| Pitch | : | 0.19685 in |
| Overall Length | : | 1 in |
| Bore Diameter | : | 3/8 to 1-1/4 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 3.215 in |
| Number of Grooves | : | 52 |
| Pitch Diameter | : | 3.258 in |
| Face Width | : | 1.23 in |
| Type | : | Solid Type CF-1 |
| Flange Diameter | : | 3.41 in |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
