Martin P445M15-JA
Martin

Martin P445M15-JA

loading

P445M15-JA

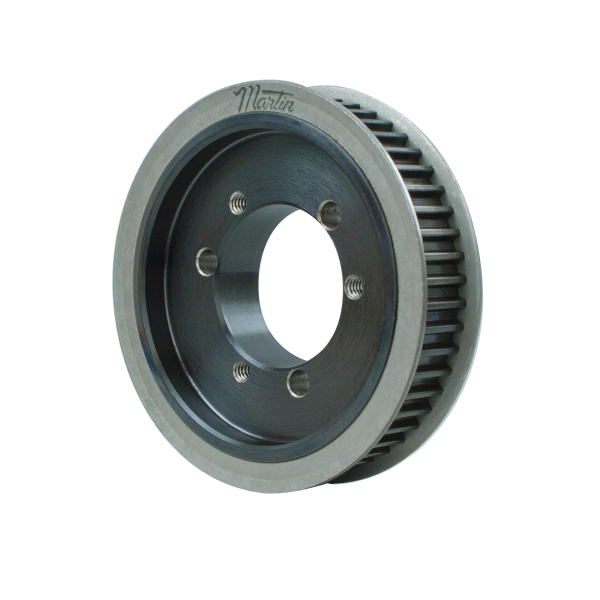

Martin HTS® P445M15-JA Reverse Mount Solid Type EF-1 High Torque Sprocket, 3/8 to 1-1/4 in QD® Bushed Bore, 2.714 in OD, 44 Grooves, 2.757 in Dia Pitch, 0.84 in W Face

  • Item#: P445M15-JA
  • Mfr#: P445M15-JA
  • UPC: 697950782041
    • Non slip toothed drive with no metal to metal contact
    • Exhibit many of the best features of chain drives and belt drives
    • No lubrication needed
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.

Martin HTS® High Torque Sprocket, Reverse Mount Solid Type EF-1, QD® Bushed Bore, 3/8 to 1-1/4 in Bore Dia, 2.714 in Outside Dia, 2.757 in, 44 Grooves, 0.19685 in Pitch, 0.84 in Face Width, 2.91 in Flange Dia, JA Bushing, 1.28 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Steel

SPECIFICATIONS

Bushing Type      :      JA
Material      :      Steel
Pitch      :      0.19685 in
Overall Length      :      1.28 in
Bore Diameter      :      3/8 to 1-1/4 in
Bore Type      :      QD® Bushed
Outside Diameter      :      2.714 in
Number of Grooves      :      44
Pitch Diameter      :      2.757 in
Face Width      :      0.84 in
Type      :      Reverse Mount Solid Type EF-1
Flange Diameter      :      2.91 in
Suitable For Use With      :      RPP®, RPP® Plus®, Hawk Pd® and HTD® belts

DOCUMENTS

  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf
  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
