- Martin P3814M115-MPB
P3814M115-MPB

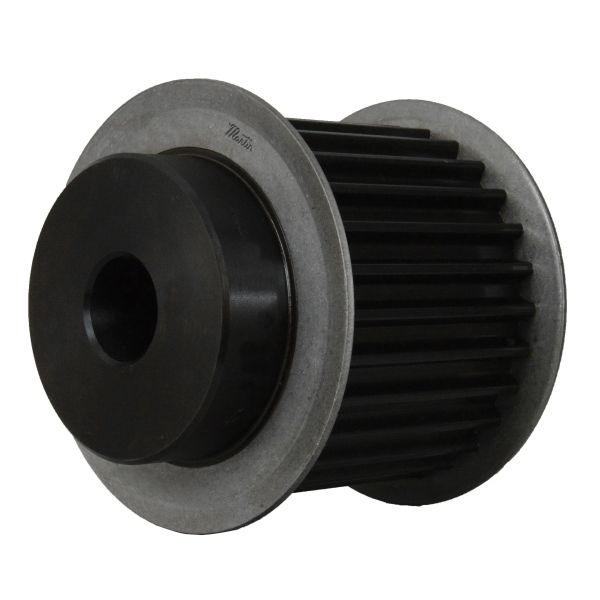

Martin HTS® P3814M115-MPB Solid Type DF-1 High Torque Sprocket, 1-1/4 to 3 in Minimum Plain Bore, 6.2085 in OD, 38 Grooves, 6.667 in Dia Pitch, 5-1/4 in W Face
- CP#:
- Item#: P3814M115-MPB
- Mfr#: P3814M115-MPB
- UPC: 697950781518
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Solid Type DF-1, Minimum Plain Bore, 1-1/4 to 3 in Bore Dia, 6.2085 in Outside Dia, 6.667 in, 38 Grooves, 0.55118 in Pitch, 5-1/4 in Face Width, 7.16 in Flange Dia, 5-11/64 in Hub Dia, 1-1/4 in Hub Projection, 6-1/2 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Steel
SPECIFICATIONS
| Material | : | Steel |
| Pitch | : | 0.55118 in |
| Overall Length | : | 6-1/2 in |
| Bore Diameter | : | 1-1/4 to 3 in |
| Bore Type | : | Minimum Plain |
| Outside Diameter | : | 6.2085 in |
| Number of Grooves | : | 38 |
| Pitch Diameter | : | 6.667 in |
| Face Width | : | 5-1/4 in |
| Type | : | Solid Type DF-1 |
| Hub Diameter | : | 5-11/64 in |
| Flange Diameter | : | 7.16 in |
| Hub Projection | : | 1-1/4 in |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
