P248M20-1108

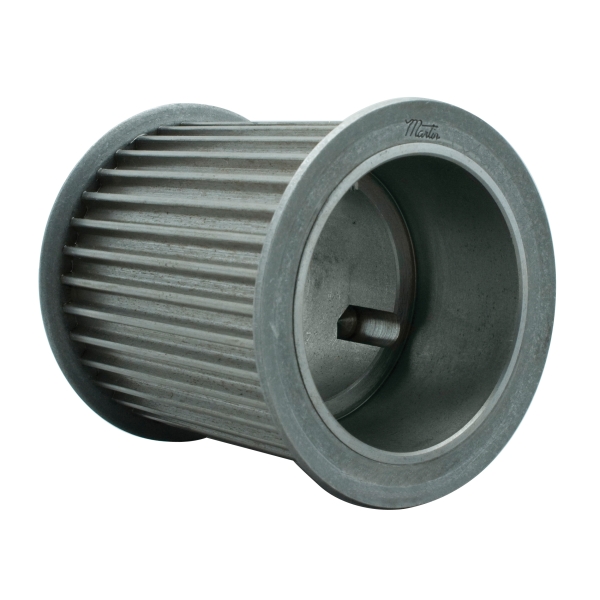

Martin HTS® P248M20-1108 Solid Type KF-1 High Torque Sprocket, 1/2 to 1-1/8 in Taper Bushed Bore, 2.352 in OD, 24 Grooves, 2.406 in Dia Pitch, 1-1/8 in W Face
- CP#:
- Item#: P248M20-1108
- Mfr#: P248M20-1108
- UPC: 697950780504
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Solid Type KF-1, Taper Bushed Bore, 1/2 to 1-1/8 in Bore Dia, 2.352 in Outside Dia, 2.406 in, 24 Grooves, 8 mm Pitch, 1-1/8 in Face Width, 2-3/4 in Flange Dia, 1108 Bushing, 1-1/8 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Steel
SPECIFICATIONS
| Bushing Type | : | 1108 |
| Material | : | Steel |
| Pitch | : | 8 mm |
| Overall Length | : | 1-1/8 in |
| Bore Diameter | : | 1/2 to 1-1/8 in |
| Bore Type | : | Taper Bushed |
| Outside Diameter | : | 2.352 in |
| Number of Grooves | : | 24 |
| Pitch Diameter | : | 2.406 in |
| Face Width | : | 1-1/8 in |
| Type | : | Solid Type KF-1 |
| Flange Diameter | : | 2-3/4 in |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
