P14414M115-4545

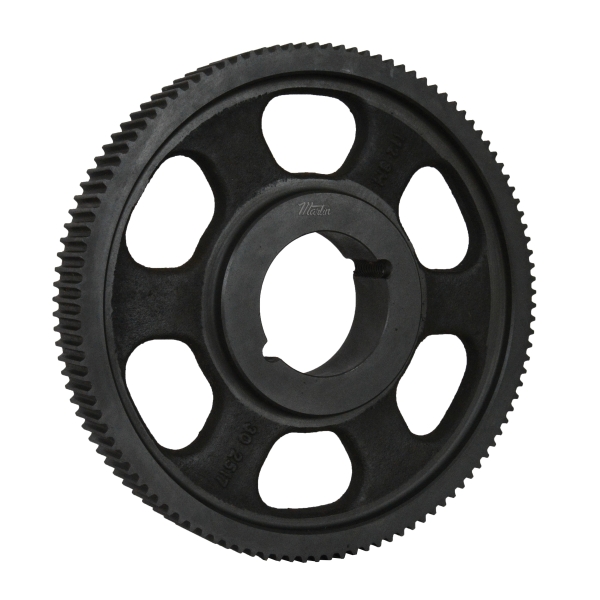

Martin HTS® P14414M115-4545 Arms Type W-3 High Torque Sprocket, 1.938 to 4.5 in Taper Bushed Bore, 25.158 in OD, 144 Grooves, 25.2645 in Dia Pitch, 5-1/4 in W Face
- CP#:
- Item#: P14414M115-4545
- Mfr#: P14414M115-4545
- UPC: 697950441221
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Arms Type W-3, Taper Bushed Bore, 1.938 to 4.5 in Bore Dia, 25.158 in Outside Dia, 25.2645 in, 144 Grooves, 0.55118 in Pitch, 5-1/4 in Face Width, 4545 Bushing, 5-1/4 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Cast Iron
SPECIFICATIONS
| Bushing Type | : | 4545 |
| Material | : | Cast Iron |
| Pitch | : | 0.55118 in |
| Overall Length | : | 5-1/4 in |
| Bore Diameter | : | 1.938 to 4.5 in |
| Bore Type | : | Taper Bushed |
| Outside Diameter | : | 25.158 in |
| Number of Grooves | : | 144 |
| Pitch Diameter | : | 25.2645 in |
| Face Width | : | 5-1/4 in |
| Type | : | Arms Type W-3 |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
