P1128M85-F

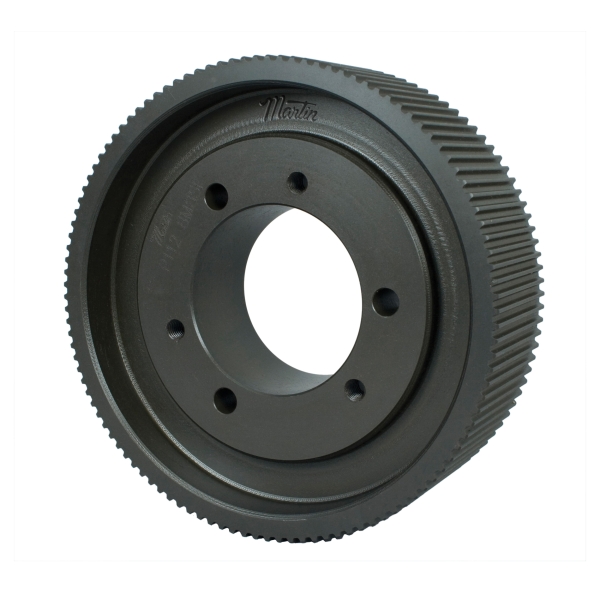

Martin HTS® P1128M85-F Arms Type A-3 High Torque Sprocket, 1 to 4 in QD® Bushed Bore, 11.178 in OD, 112 Grooves, 11.229 in Dia Pitch, 3-3/4 in W Face
- CP#:
- Item#: P1128M85-F
- Mfr#: P1128M85-F
- UPC: 697950779973
- Non slip toothed drive with no metal to metal contact
- Exhibit many of the best features of chain drives and belt drives
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High Torque Sprocket, Arms Type A-3, QD® Bushed Bore, 1 to 4 in Bore Dia, 11.178 in Outside Dia, 11.229 in, 112 Grooves, 0.31496 in Pitch, 3-3/4 in Face Width, F Bushing, 3-3/4 in Overall Length, For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts, Cast Iron
SPECIFICATIONS
| Bushing Type | : | F |
| Material | : | Cast Iron |
| Pitch | : | 0.31496 in |
| Overall Length | : | 3-3/4 in |
| Bore Diameter | : | 1 to 4 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 11.178 in |
| Number of Grooves | : | 112 |
| Pitch Diameter | : | 11.229 in |
| Face Width | : | 3-3/4 in |
| Type | : | Arms Type A-3 |
| Suitable For Use With | : | RPP®, RPP® Plus®, Hawk Pd® and HTD® belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
