P1 13/16

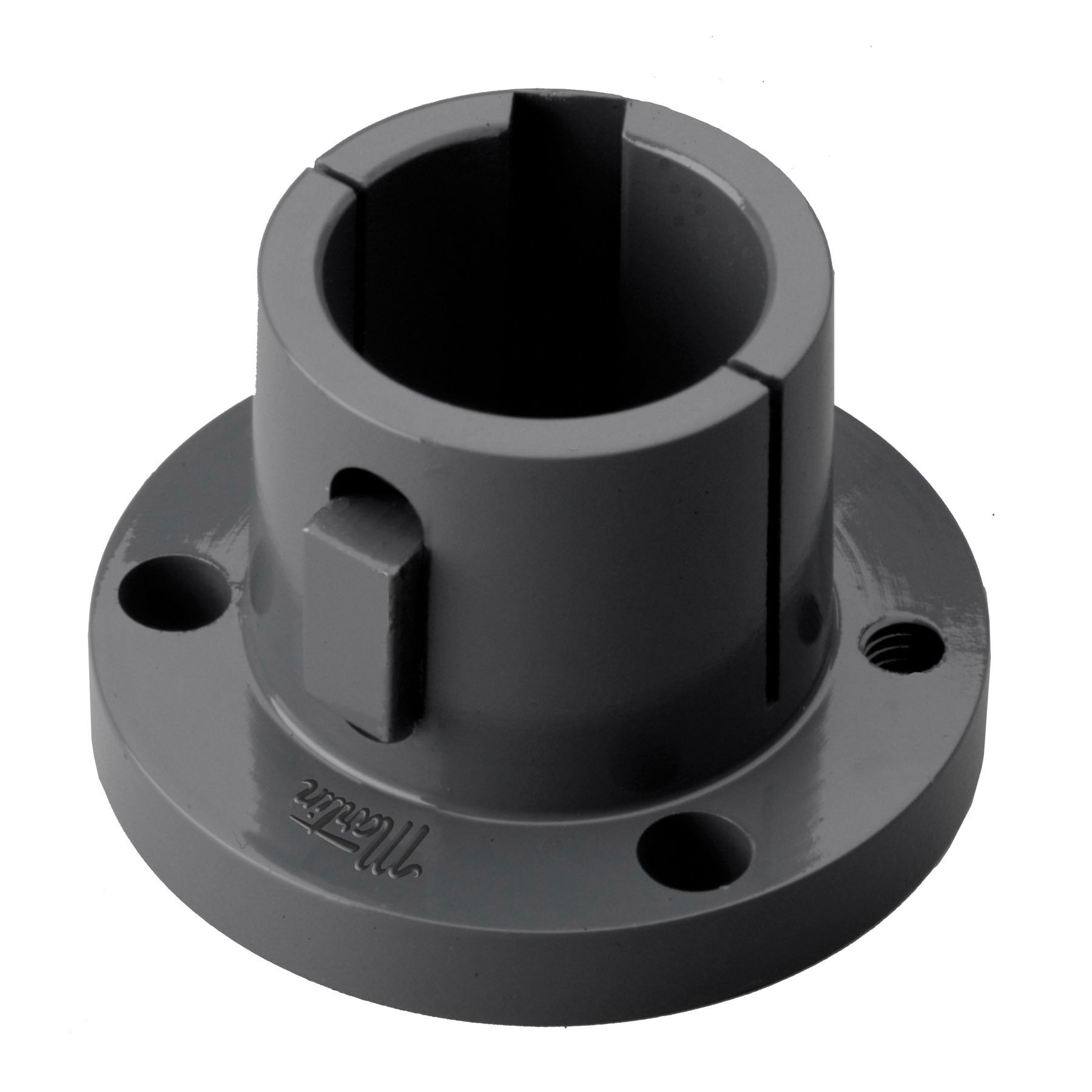

Martin P1 13/16 Standard MST® P1 Bushing, 0.813 to 1.438 in Dia Bore, 1-15/16 in Dia Barrel, 3 in Dia Flange, 1.94 in OAL, Steel
- CP#:
- Item#: P1 13/16
- Mfr#: P1 13/16
- UPC: 697950127811
- Tolerances meet or exceed industry standards
- Precise machining and processes ensure consistent finish and high quality
- Interchangeable with other manufacturers’ split-taper bushings
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during blind installations.
Martin Bushing, Standard MST® P1, 0.813 to 1.438 in Bore, 1-15/16 in Barrel Diameter, 2-7/16 in Diameter Bolt Circle, 3 in Diameter Flange, 0.406 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 1 in Screw, 192 in-lb Torque, 1.94 in Overall Length, 3/16 x 3/32 in Keyway, Steel
SPECIFICATIONS
| Torque Rating | : | 192 in-lb |
| Keyway Size | : | 3/16 x 3/32 in |
| Flange Thickness | : | 0.406 in |
| Bore Diameter | : | 0.813 to 1.438 in |
| Overall Length | : | 1.94 in |
| Material | : | Steel |
| Number of Bolt Holes | : | 3 |
| Screw Size | : | 5/16-18 x 1 in |
| Type | : | Standard MST® P1 |
| Bolt Circle Diameter | : | 2-7/16 in |
| Barrel Diameter | : | 1-15/16 in |
| Flange Diameter | : | 3 in |
