ML150 40MM

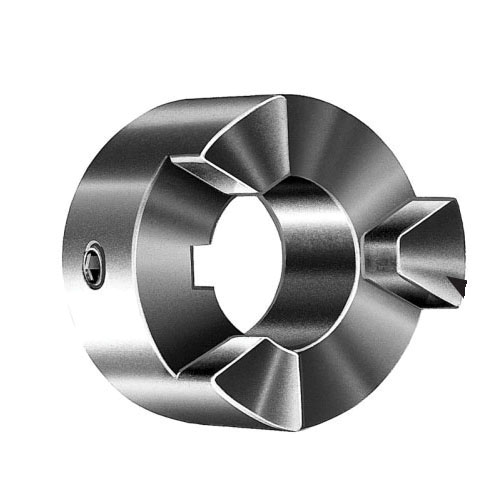

Martin ML150 40MM ML Universal Series Bored-to-Size Shaft Jaw Coupling Hub With Keyway, 150 Coupling, 40 mm Dia Bore, 1-3/4 in L Through Bore, 3-3/4 in Dia Hub, Steel
- CP#:
- Item#: ML150 40MM
- Mfr#: ML150 40MM
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin offers two complete lines of jaw couplings, one for greater horsepower and one for interchangeability. Features include Non-lubricated, easy installation, no metal to metal contact resistant to oil, dirt, sand, moisture, grease, easy inspection of load carrying spider, flexibility of angular or parallel misalignment of shafts by Buna-N spider member permits smooth power transmission. Buna rubber, Hytrel® and Urethane spiders are stocked in all branches.
Martin Jaw Coupling Hub, Bored-to-Size Shaft, Series: ML Universal Series, 150 Coupling, 40 mm Bore, 3-3/4 in Diameter Hub, 3600 rpm Maximum, 1-3/4 in Length Through Bore, Steel
SPECIFICATIONS
| Type | : | Bored-to-Size Shaft |
| Series | : | ML Universal Series |
| Material | : | Steel |
| Maximum Speed | : | 3600 rpm |
| Coupling Size | : | 150 |
| Length Through Bore | : | 1-3/4 in |
| Hub Diameter | : | 3-3/4 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_ML035_4MM_Specification_Sheet.pdf
