M1020A

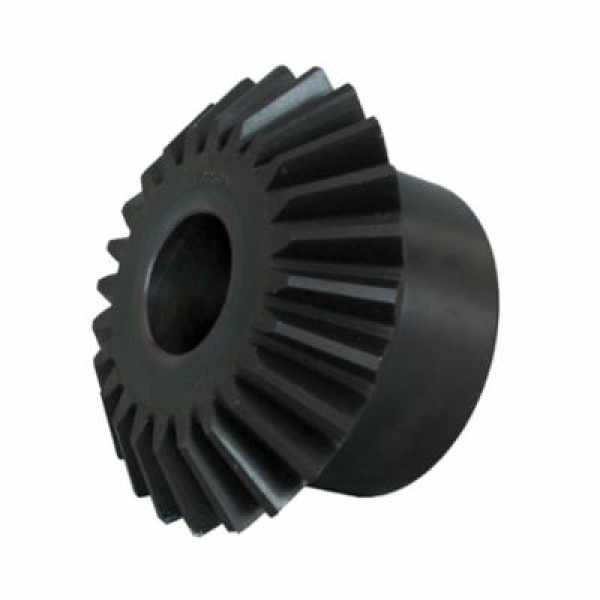

Martin M1020A M Series Plain Reborable Straight Tooth Miter Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 20 Teeth, 2 in Dia Pitch, 0.44 in W Face, 0.5 to 0.939 in Dia Bore, Steel
- CP#:
- Item#: M1020A
- Mfr#: M1020A
- UPC: 697950051819
- Right angle drives with varied ratios
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock miter gears are manufactured from 0.4 carbon steel. The "M" series is furnished unhardened with plain bore. The "HM" series is furnished hardened teeth with plain bore. The "HMK" series is furnished hardened teeth with keyway and setscrew for installation on the shaft. Hardened miter gears have approximately 50% more horsepower capacity and provide greater gear wear than untreated gears. All Martin miter gears are cut with the 20 deg pressure angle system.
Martin Straight Tooth Miter Gear, Plain Reborable, Series: M Series, 0.5 to 0.939 in Bore Dia, 2.141 in Outside Dia, 20 Teeth, 10 Diametral Pitch, 2 in, 0.44 in Face Width, No Screws, 1-5/8 in Hub Dia, 0.813 in Hub Projection, 1-23/64 in Overall Length, 20 deg Pressure Angle, Steel
SPECIFICATIONS
| Hub Diameter | : | 1-5/8 in |
| Hub Projection | : | 0.813 in |
| Hub Type | : | No Screws |
| Outside Diameter | : | 2.141 in |
| Overall Length | : | 1-23/64 in |
| Series | : | M Series |
| Type | : | Plain Reborable |
| Diametral Pitch | : | 10 |
| Pressure Angle | : | 20 deg |
| Number of Teeth | : | 20 |
| Pitch Diameter | : | 2 in |
| Face Width | : | 0.44 in |
| Bore Diameter | : | 0.5 to 0.939 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_B1015-4_Catalog.pdf
