HM1030

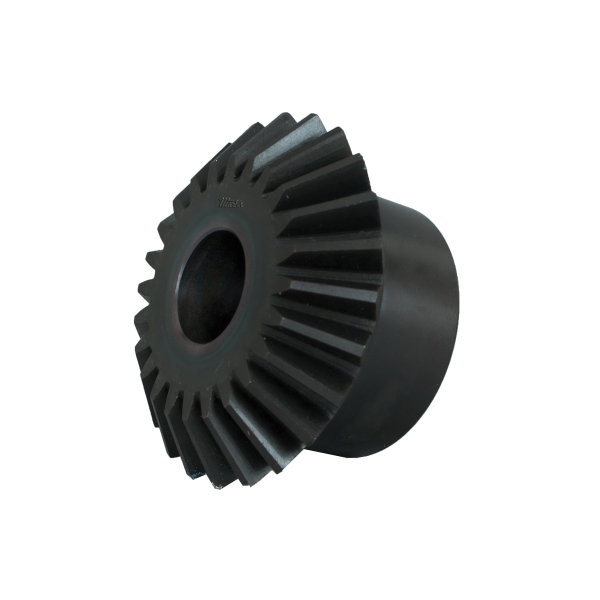

Martin HM1030 Plain Reborable Straight Miter Gear, 10 Diametral Pitch, Right Angle Rotation, 20 deg Pressure Angle, 30 Teeth, 3 in Dia Pitch, 0.64 in W Face, 0.75 to 1.126 in Dia Bore, Carbon Steel
- CP#:
- Item#: HM1030
- Mfr#: HM1030
- UPC: 697950052014
- Precise machining and processes ensure consistent finish and high quality
- AGMA 6 to 8 commercial class gear
- Hardened teeth
- Right angle drives with 1:1 ratio
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock miter gears are manufactured from 0.4 carbon steel. The "M" series is furnished unhardened with plain bore. The "HM" series is furnished hardened teeth with plain bore. The "HMK" series is furnished hardened teeth with keyway and setscrew for installation on the shaft. Hardened miter gears have approximately 50% more horsepower capacity and provide greater gear wear than untreated gears. All Martin miter gears are cut with the 20 deg pressure angle system.
Martin Straight Miter Gear, Plain Reborable, 0.75 to 1.126 in Bore Dia, 3.141 in Outside Dia, 1:1 Gear Ratio, 30 Teeth, 10 Diametral Pitch, 3 in, 0.64 in Face Width, Right Angle Direction of Rotation, No Screws, 2 in Hub Dia, 1 in Hub Projection, 1-3/4 in Overall Length, 20 deg Pressure Angle, Carbon Steel
SPECIFICATIONS
| Gear Ratio | : | 1:1 |
| Hub Diameter | : | 2 in |
| Hub Projection | : | 1 in |
| Hub Type | : | No Screws |
| Outside Diameter | : | 3.141 in |
| Overall Length | : | 1-3/4 in |
| Series | : | HM |
| Type | : | Plain Reborable |
| Diametral Pitch | : | 10 |
| Direction of Rotation | : | Right Angle |
| Pressure Angle | : | 20 deg |
| Number of Teeth | : | 30 |
| Pitch Diameter | : | 3 in |
| Face Width | : | 0.64 in |
| Bore Diameter | : | 0.75 to 1.126 in |
| Material | : | Carbon Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_M424_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_M424_Specification_Sheet.pdf
