E6-RSA7-84-07
Martin E6-RSA7-84-07 Return Self-Aligning Idler, E CEMA Rating, 6 in Dia Roll, 84 in W Belt, Steel
- CP#:
- Item#: E6-RSA7-84-07
- Mfr#: E6-RSA7-84-07
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Martin triple labyrinth seal is grease filled that offers an additional level of protection from contaminants and water ingress impacting the bearing
- The contact lip seal adds additional level of protection
- CEMA E idlers have sealed for life ball bearings
- CEMA E idlers offers extremely low rolling resistance that allows for lower operating cost
- Patent pending idler end welding allows for protection against belt wear
- 1-5/8 in solid steel shaft machined down to 40 mm at each end
- Martin idlers have exceptionally low TIR runout
- 07-guage wall thickness
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Self aligning idlers are used to assist with belts that may be misaligned due to environmental conditions. Self aligning idlers pivot and attempt to guide the belt back into the center of the troughing idlers. Self aligning idlers can be troughing, return or flat carrying.

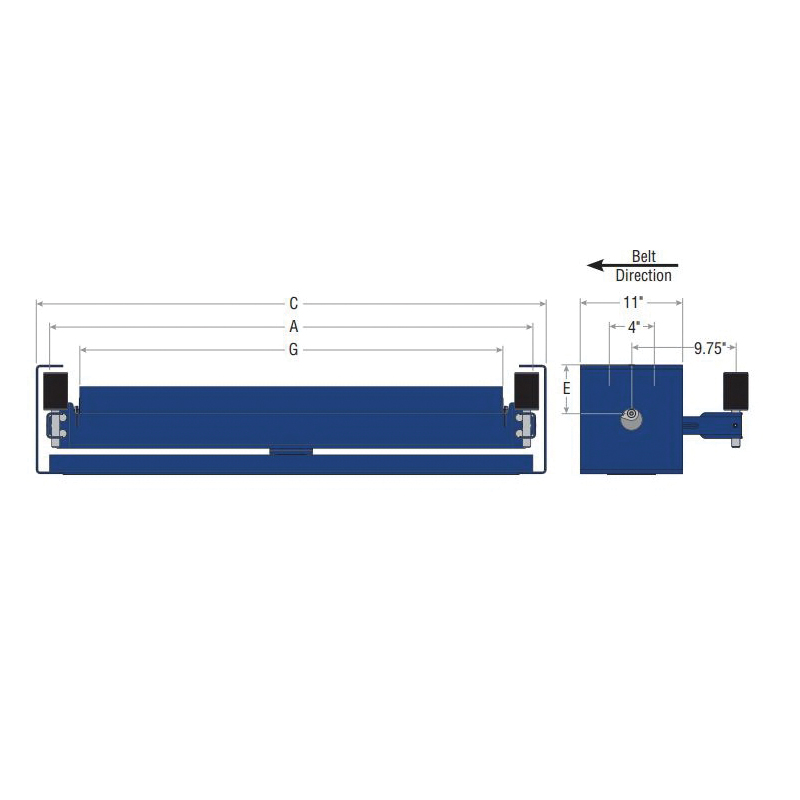

Martin Return Self-Aligning Idler, E CEMA, 6 in Roll Dia, 84 in Belt Width, Sealed Ball Bearing, 88 in Roller Length, 93 in Distance Between Mounting Holes, 88 in Distance Between Roller Ends, Steel
SPECIFICATIONS
| Roller Length | : | 88 in |
| Belt Width | : | 84 in |
| Material | : | Steel |
| Bearing Type | : | Sealed Ball |
| Distance Between Mounting Holes | : | 93 in |
| Distance Between Roller Ends | : | 88 in |
| CEMA Rating | : | E |
| Roll Diameter | : | 6 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Specification_Sheet.pdf
