- Martin E6-FRD-60-4
E6-FRD-60-4
Martin E6-FRD-60-4 Flat Rubber Disc Carrier Idler, E CEMA Rating, 6 in Dia Roll, 60 in W Belt, Steel
- CP#:
- Item#: E6-FRD-60-4
- Mfr#: E6-FRD-60-4
- UPC: 697950827964
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Martin triple labyrinth seal is grease filled that offers an additional level of protection from contaminants and water ingress impacting the bearing
- The contact lip seal adds additional level of protection
- CEMA E idlers have sealed for life ball bearings
- CEMA E idlers offers extremely low rolling resistance that allows for lower operating cost
- Patent pending idler end welding allows for protection against belt wear
- 1-5/8 in solid steel shaft machined down to 40 mm at each end
- Martin idlers have exceptionally low TIR runout
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Flat carrier idlers are used with flat belts where a trough is not required to contain material. They are used for picking, sorting, feeding or plowing material from the belt. Flat carrier idlers are available with rubber discs or as steel idler rolls.

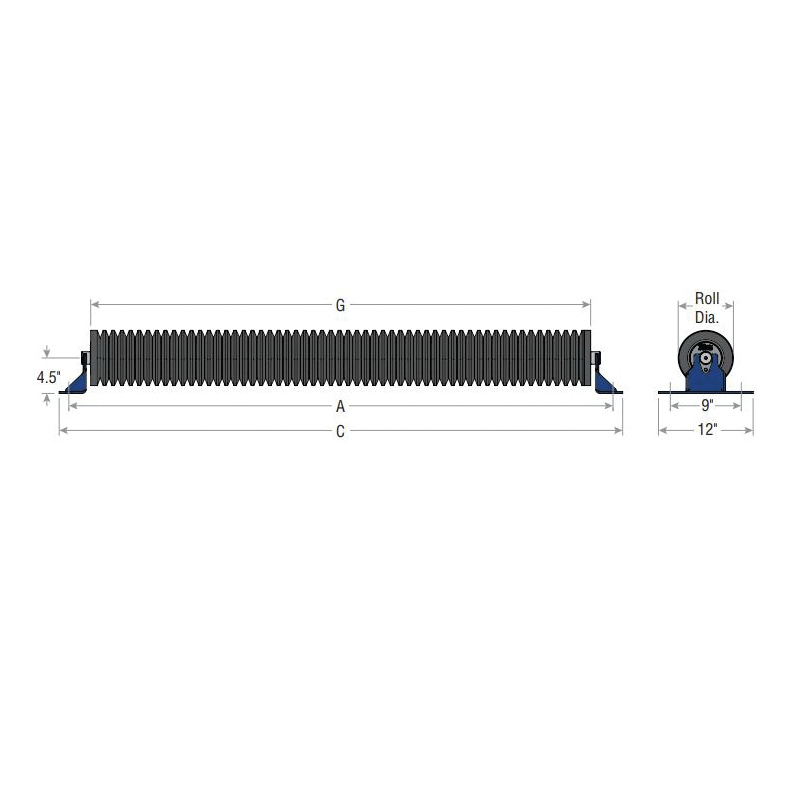

Martin Flat Rubber Disc Carrier Idler, E CEMA, 6 in Roll Dia, 60 in Belt Width, Sealed Ball Bearing, 64 in Roller Length, 69 in Distance Between Mounting Holes, 64 in Distance Between Roller Ends, Steel
SPECIFICATIONS
| Roller Length | : | 64 in |
| Belt Width | : | 60 in |
| Material | : | Steel |
| Bearing Type | : | Sealed Ball |
| Distance Between Mounting Holes | : | 69 in |
| Distance Between Roller Ends | : | 64 in |
| CEMA Rating | : | E |
| Roll Diameter | : | 6 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Specification_Sheet.pdf
