E50B19H

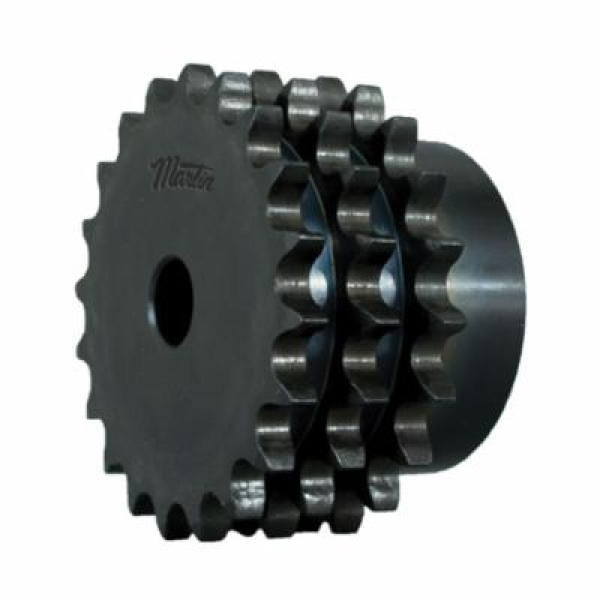

Martin E50B19H Solid Stock Bore Type B Triple Strand Roller Chain Sprocket, 1 to 2-1/8 in Dia Bore, 4.12 in OD, 50 Chain, 19 Teeth, 5/8 in Pitch, Steel

  • Item#: E50B19H
  • Mfr#: E50B19H
  • UPC: 697950014241
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
    • Bores are concentric to pitch line, minimizing run out
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin metric triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Solid Stock Bore Type B Triple Strand, 1 to 2-1/8 in Bore Dia, 4.12 in Outside Dia, 50 Chain, 19 Teeth, 5/8 in Pitch, 3.797 in, 3.08 in Hub Dia, 2-1/2 in Length Through Bore, Steel

SPECIFICATIONS

Bore Diameter      :      1 to 2-1/8 in
Outside Diameter      :      4.12 in
Chain Size      :      50
Number of Teeth      :      19
Pitch      :      5/8 in
Material      :      Steel
Hub Diameter      :      3.08 in
Type      :      Solid Stock Bore Type B Triple Strand
Length Through Bore      :      2-1/2 in
Pitch Diameter      :      3.797 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_160E12_Catalog.pdf
