E35SK76

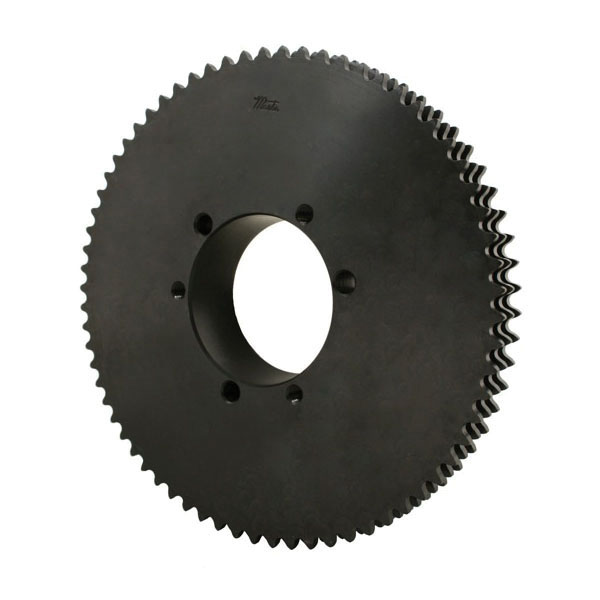

Martin E35SK76 Type C Triple Strand Solid Bushed Roller Chain Sprocket, 1/2 to 2-5/8 in Dia Bore, 9.292 in OD, #35 Chain, 76 Teeth, 3/8 in Pitch, Steel

  • Item#: E35SK76
  • Mfr#: E35SK76
  • UPC: 697950003399
    • Interchangeable with other manufacturer's QD® bushings
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
    • Bores are concentric to pitch line, minimizing run out
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

QD (quick detachable) is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.

Martin Roller Chain Sprocket, Type C Triple Strand Solid Bushed, 1/2 to 2-5/8 in Bore, 9.292 in OD, #35 Chain, 76 Teeth, 3/8 in Pitch, 9.074 in Pitch Diameter, 3-7/8 in Diameter Hub, 1-1/4 in Length Through Bore, QD® SK Bushing, Steel

SPECIFICATIONS

Bushing Type      :      QD® SK
Bore Diameter      :      1/2 to 2-5/8 in
Outside Diameter      :      9.292 in
Chain Size      :      #35
Number of Teeth      :      76
Pitch      :      3/8 in
Material      :      Steel
Hub Diameter      :      3-7/8 in
Type      :      Type C Triple Strand Solid Bushed
Length Through Bore      :      1-1/4 in
Pitch Diameter      :      9.074 in

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
  • video VIDEO LINK https://www.youtube.com/watch?v=fSomOMNB_-Q
