E10C76

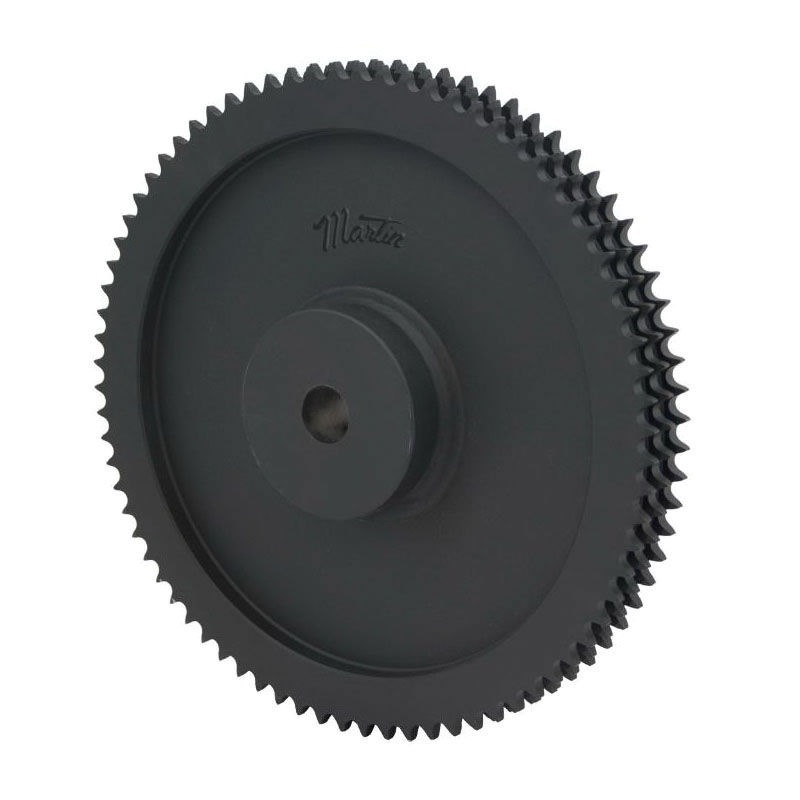

Martin E10C76 Type C Stock Bore Triple Strand Welded Roller Chain Sprocket, 32 to 85 mm Dia Bore, 393.834 mm OD, #10B-3 Chain, 76 Teeth, 15.875 mm Pitch, High Carbon Steel
- CP#:
- Item#: E10C76
- Mfr#: E10C76
- UPC: 697950400259
- Without hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin metric triple strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and harden teeth are quick alterations that can be made.
Martin Roller Chain Sprocket, Type C Stock Bore Triple Strand Welded, 32 to 85 mm Bore, 393.834 mm OD, #10B-3 Chain, 76 Teeth, 15.875 mm Pitch, 384.15 mm Pitch Diameter, 119.99 mm Diameter Hub, 89.002 mm Length Through Bore, High Carbon Steel
SPECIFICATIONS
| Bore Diameter | : | 32 to 85 mm |
| Outside Diameter | : | 393.834 mm |
| Chain Size | : | #10B-3 |
| Number of Teeth | : | 76 |
| Pitch | : | 15.875 mm |
| Material | : | High Carbon Steel |
| Hub Diameter | : | 119.99 mm |
| Type | : | Type C Stock Bore Triple Strand Welded |
| Length Through Bore | : | 89.002 mm |
| Pitch Diameter | : | 384.15 mm |
