DS100A15

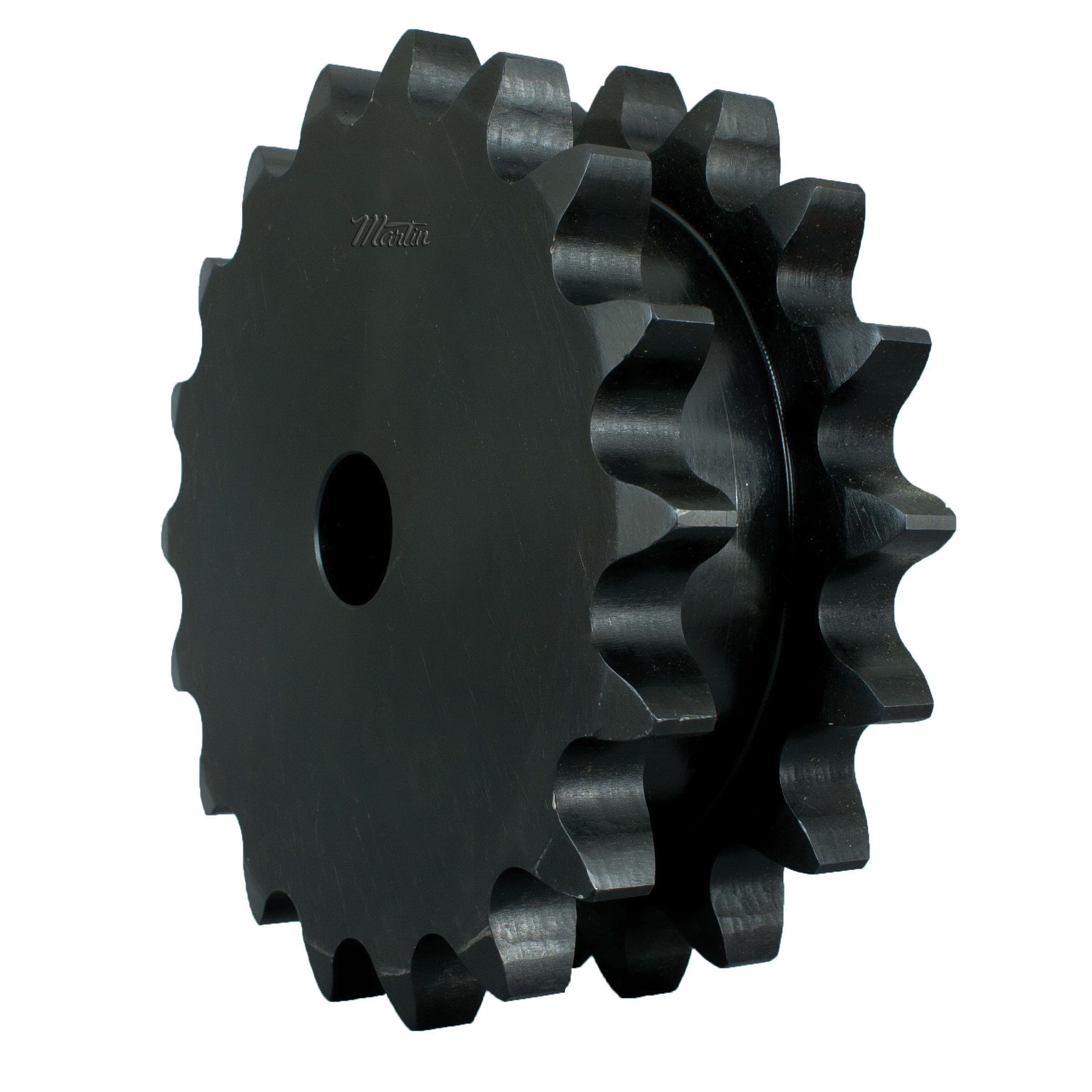

Martin DS100A15 Type A Double Single Strand Reboreable Roller Chain Sprocket, 1-1/4 to 3-1/16 in Dia Bore, 6.631 in OD, #100 Chain, 15 Teeth, 1-1/4 in Pitch, Steel
- CP#:
- Item#: DS100A15
- Mfr#: DS100A15
- UPC: 697950030135
- To be run with two separate single row chains
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Double single sprockets are precision machined steel sprockets and run with two single chains. They are stocked in minimum plain bore, taper bushed and Martin split taper style. The minimum plain bores can be quickly modified for your specific application.
Martin Roller Chain Sprocket, Type A Double Single Strand Reboreable, 1-1/4 to 3-1/16 in Bore, 6.631 in OD, #100 Chain, 15 Teeth, 1-1/4 in Pitch, 6.0122 in Pitch Diameter, 4.593 in Diameter Hub, 2-11/16 in Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 1-1/4 to 3-1/16 in |
| Outside Diameter | : | 6.631 in |
| Chain Size | : | #100 |
| Number of Teeth | : | 15 |
| Pitch | : | 1-1/4 in |
| Material | : | Steel |
| Length Through Bore | : | 2-11/16 in |
| Pitch Diameter | : | 6.0122 in |
| Type | : | Type A Double Single Strand Reboreable |
| Hub Diameter | : | 4.593 in |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf -
VIDEO LINK
https://www.youtube.com/watch?v=fSomOMNB_-Q
