D80R30

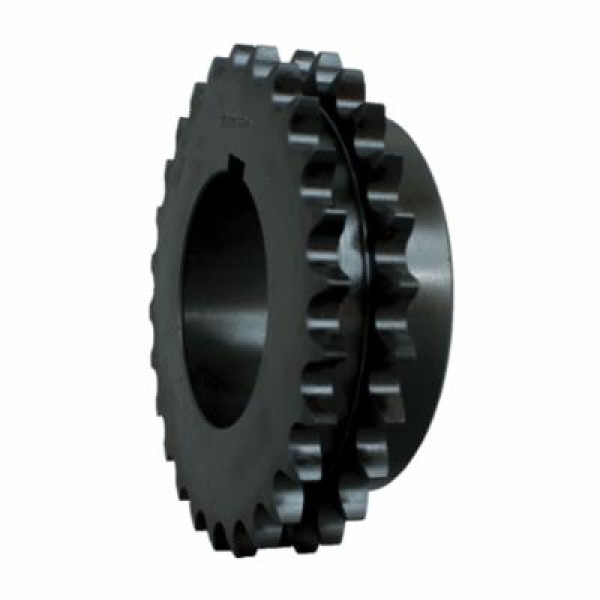

Martin D80R30 MST® R1 Bushed Solid Type 12 Split Double Roller Chain Sprocket, 1-1/8 to 3-3/4 in Dia Bore, 10.114 in OD, 80 Chain, 30 Teeth, 1 in Pitch, Steel
- CP#:
- Item#: D80R30
- Mfr#: D80R30
- UPC: 697950218113
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Split Double Roller Chain Sprocket, MST® R1 Bushed Solid Type 12, 1-1/8 to 3-3/4 in Bore Dia, 10.114 in Outside Dia, 80 Chain, 30 Teeth, 1 in Pitch, 9.567 in, 5-1/2 in Hub Dia, 3/4 in W Keyway, 2-7/8 in Length Through Bore, Type R1 Split Taper Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | Type R1 Split Taper |
| Bore Diameter | : | 1-1/8 to 3-3/4 in |
| Outside Diameter | : | 10.114 in |
| Chain Size | : | 80 |
| Number of Teeth | : | 30 |
| Pitch | : | 1 in |
| Material | : | Steel |
| Keyway Size | : | 3/4 in W |
| Hub Diameter | : | 5-1/2 in |
| Type | : | MST® R1 Bushed Solid Type 12 |
| Pitch Diameter | : | 9.567 in |
| Length Through Bore | : | 2-7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
