D80B14H

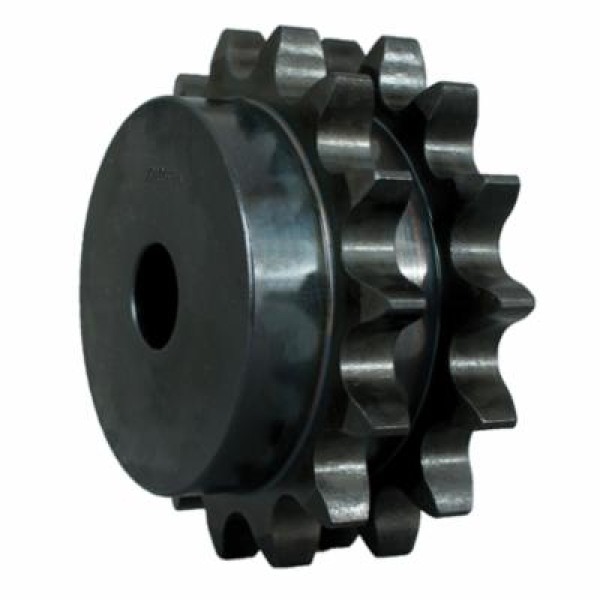

Martin D80B14H Double Strand Solid Stock Bore Type B Single Roller Chain Sprocket, 1 in Dia Bore, 4.981 in OD, 80-2 Chain, 14 Teeth, 1 in Pitch, Steel

  • Item#: D80B14H
  • Mfr#: D80B14H
  • UPC: 697950021942
    • Manufactured of high carbon steel
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.

Martin Single Roller Chain Sprocket, Double Strand Solid Stock Bore Type B, 1 in Bore Dia, 4.981 in Outside Dia, 80-2 Chain, 14 Teeth, 1 in Pitch, 4.494 in, 3.47 in Hub Dia, 2-1/2 in Length Through Bore, Steel

SPECIFICATIONS

Bore Diameter      :      1 in
Outside Diameter      :      4.981 in
Chain Size      :      80-2
Number of Teeth      :      14
Pitch      :      1 in
Material      :      Steel
Length Through Bore      :      2-1/2 in
Pitch Diameter      :      4.494 in
Type      :      Double Strand Solid Stock Bore Type B
Hub Diameter      :      3.47 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_41SH32_Catalog.pdf
