D80ATB16H

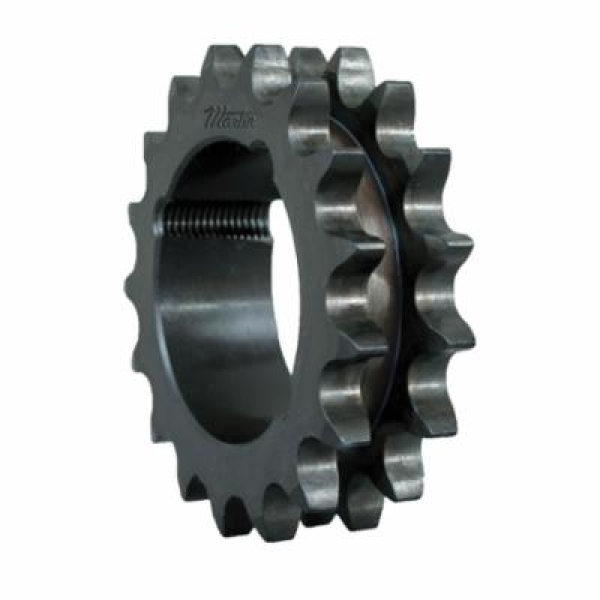

Martin D80ATB16H Double Strand TB Bushed Solid Type A Single Roller Chain Sprocket, 5.627 in OD, 80-2 Chain, 16 Teeth, 1 in Pitch, Steel
- CP#:
- Item#: D80ATB16H
- Mfr#: D80ATB16H
- UPC: 697950032429
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Single Roller Chain Sprocket, Double Strand TB Bushed Solid Type A, 5.627 in Outside Dia, 80-2 Chain, 16 Teeth, 1 in Pitch, 5.126 in, 3-1/8 in Hub Dia, 1.704 in Length Through Bore, 2517 Taper Lock Bushing, Steel
SPECIFICATIONS
| Bushing Type | : | 2517 Taper Lock |
| Outside Diameter | : | 5.627 in |
| Chain Size | : | 80-2 |
| Number of Teeth | : | 16 |
| Pitch | : | 1 in |
| Material | : | Steel |
| Length Through Bore | : | 1.704 in |
| Pitch Diameter | : | 5.126 in |
| Type | : | Double Strand TB Bushed Solid Type A |
| Hub Diameter | : | 3-1/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_50A112_Catalog.pdf
