- Martin D6-FRD-54-1
D6-FRD-54-1

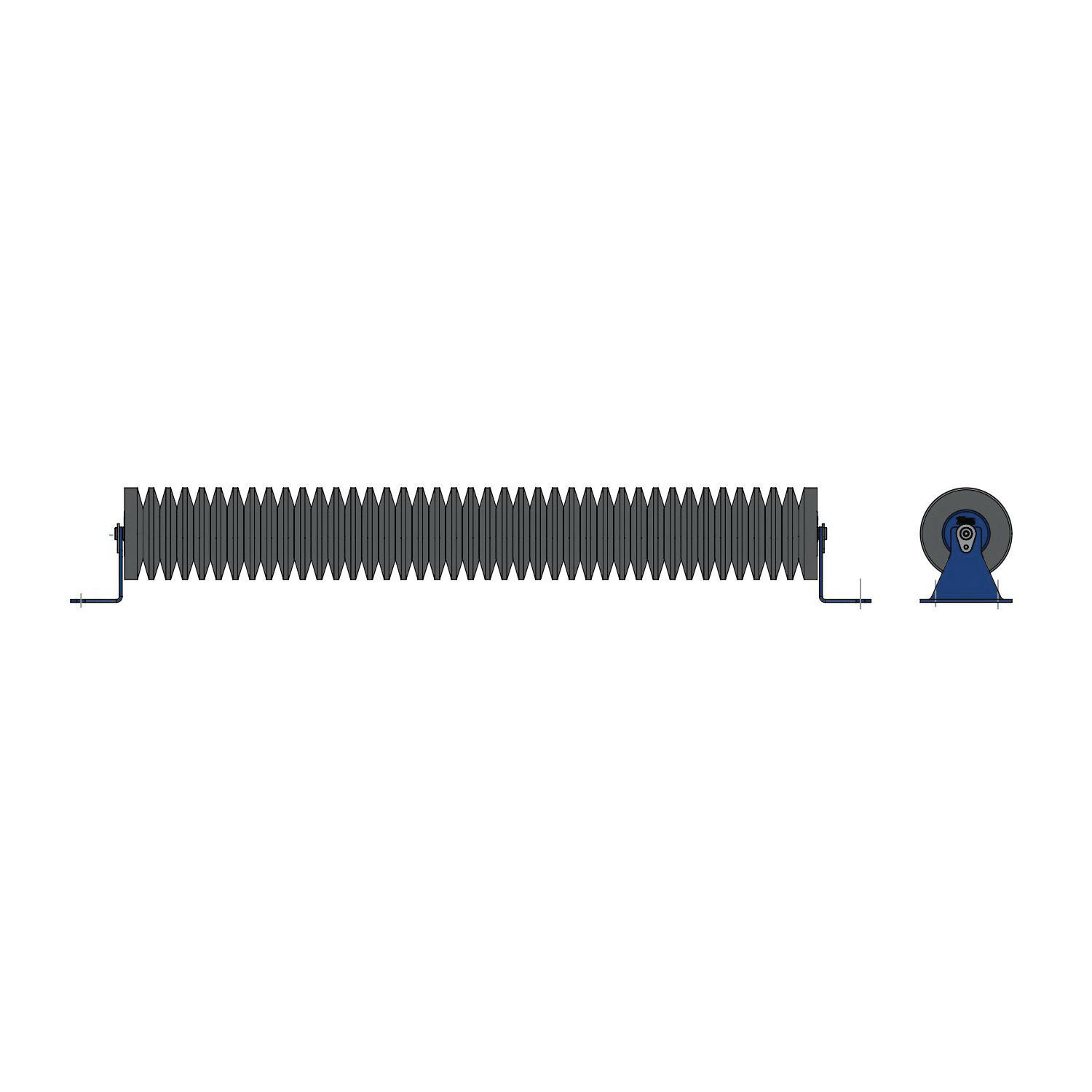

Martin D6-FRD-54-1 Impact Flat Carry Idler, D CEMA Rating, 6 in Dia Roll, 54 in W Belt
- CP#:
- Item#: D6-FRD-54-1
- Mfr#: D6-FRD-54-1
- UPC: 697950833446
- Manufactured using sealed for life ball bearings for long maintenance-free operation
- Martin premium triple labyrinth seal guard bearing protection
- Minimum 9 ga tubing on all CEMA D rolls
- Protected roll weld
- Martin triple labyrinth seal guard offers a balance of seal performance and low rolling resistance
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Grease is injected into the labyrinth chambers during manufacturing to add an additional layer of protection against bearing contamination
- The contact lip seal adds an additional level of protection against moisture and fine particulate contaminants
- CEMA D idlers have sealed for life ball bearings
- Martin CEMA D idlers offer low rolling resistance that allows for lower operating cost
- Recessed and protected bearing housing weld protects against wear from belt
- Oversized, solid steel shaft machined to 25 mm for bearings
- Martin idlers have low TIR
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin Impact Flat Carry Idler, D CEMA, 6 in Roll Diameter, 54 in Belt Width, Sealed Ball Bearing, 57.38 in Roller Length, 65.44 in Overall Width, 63 in Distance Between Mounting Holes
SPECIFICATIONS
| Roller Length | : | 57.38 in |
| Belt Width | : | 54 in |
| Distance Between Mounting Holes | : | 63 in |
| Overall Width | : | 65.44 in |
| Bearing Type | : | Sealed Ball |
| CEMA Rating | : | D |
| Roll Diameter | : | 6 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_CR_18_09_4_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_CR_24_09_4_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_IBB_60_Catalog.pdf
