D50CTB36

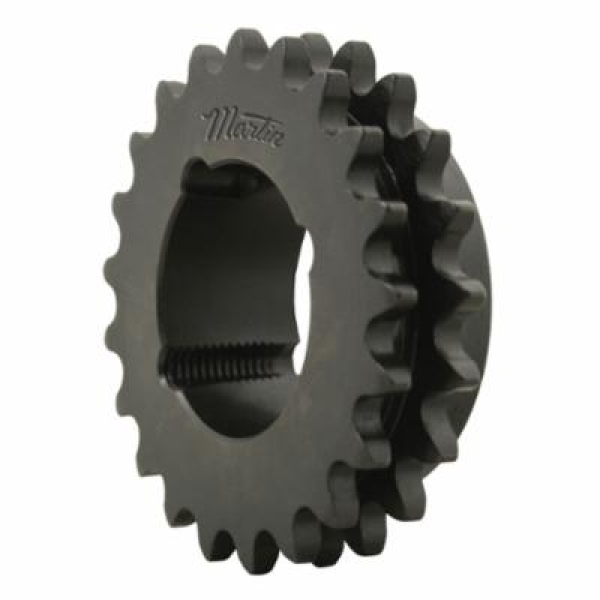

Martin D50CTB36 Double Strand TB Bushed Solid Type C Single Roller Chain Sprocket, 7.519 in OD, 50-2 Chain, 36 Teeth, 5/8 in Pitch, Steel

  • Item#: D50CTB36
  • Mfr#: D50CTB36
  • UPC: 697950031514
    • Manufactured of high carbon steel
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Single Roller Chain Sprocket, Double Strand TB Bushed Solid Type C, 7.519 in Outside Dia, 50-2 Chain, 36 Teeth, 5/8 in Pitch, 7.171 in, 4-1/4 in Hub Dia, 1-3/4 in Length Through Bore, 2517 Taper Lock Bushing, Steel

SPECIFICATIONS

Bushing Type      :      2517 Taper Lock
Outside Diameter      :      7.519 in
Chain Size      :      50-2
Number of Teeth      :      36
Pitch      :      5/8 in
Material      :      Steel
Length Through Bore      :      1-3/4 in
Pitch Diameter      :      7.171 in
Type      :      Double Strand TB Bushed Solid Type C
Hub Diameter      :      4-1/4 in

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_41SH32_Catalog.pdf
