D5-F-60-09-1

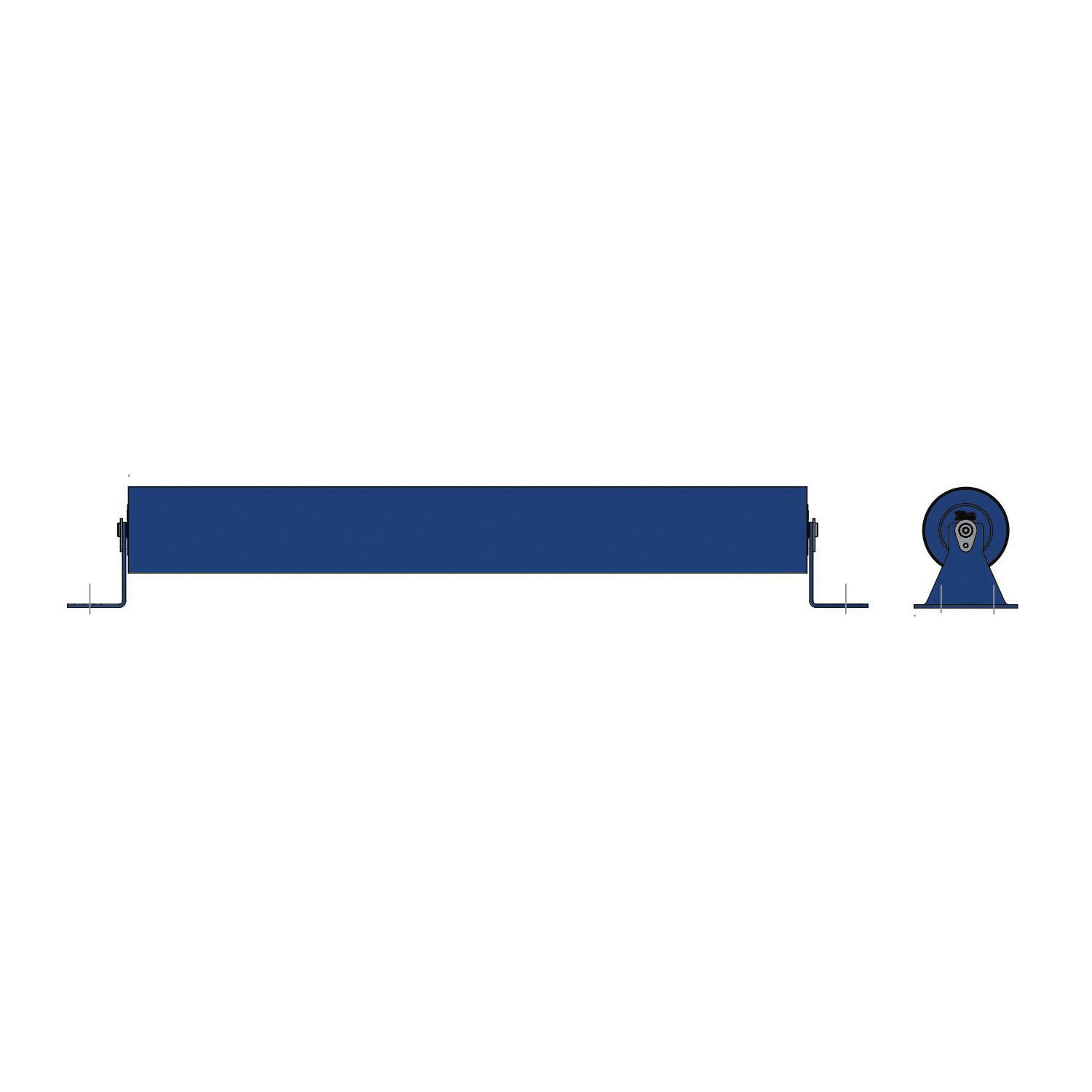

Martin D5-F-60-09-1 Flat Carry Idler, D CEMA Rating, 5 in Dia Roll, 60 in W Belt, Steel
- CP#:
- Item#: D5-F-60-09-1
- Mfr#: D5-F-60-09-1
- UPC: 697950837895
- Manufactured using sealed for life ball bearings for long maintenance-free operation
- Martin premium triple labyrinth seal guard bearing protection
- Minimum 9 ga tubing on all CEMA D rolls
- Protected roll weld
- Martin triple labyrinth seal guard offers a balance of seal performance and low rolling resistance
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Grease is injected into the labyrinth chambers during manufacturing to add an additional layer of protection against bearing contamination
- The contact lip seal adds an additional level of protection against moisture and fine particulate contaminants
- CEMA D idlers have sealed for life ball bearings
- Martin CEMA D idlers offer low rolling resistance that allows for lower operating cost
- Recessed and protected bearing housing weld protects against wear from belt
- Oversized, solid steel shaft machined to 25 mm for bearings
- Martin idlers have low TIR
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Flat carry are used with flat belts where a trough is not required to contain material. They are used for picking, sorting, feeding or plowing material from the belt. Flat carry are available with rubber discs or as steel rolls.
Martin Flat Carry Idler, D CEMA, 5 in Roll Diameter, 60 in Belt Width, Sealed Ball Bearing, 63.38 in Roller Length, 71.44 in Overall Width, 69 in Distance Between Mounting Holes, Steel
SPECIFICATIONS
| Roller Length | : | 63.38 in |
| Belt Width | : | 60 in |
| Material | : | Steel |
| Distance Between Mounting Holes | : | 69 in |
| Overall Width | : | 71.44 in |
| Bearing Type | : | Sealed Ball |
| CEMA Rating | : | D |
| Roll Diameter | : | 5 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_CR_18_09_4_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_CR_24_09_4_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_IBB_60_Catalog.pdf
