- Martin D5-20TSA-36-09
D5-20TSA-36-09

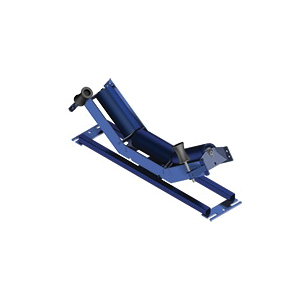

Martin D5-20TSA-36-09 Medium/Heavy Duty Self-Aligner Equal Trougher Idler, D CEMA Rating, 5 in Dia Roll, 20 deg Trough Angle, 36 in W Belt, Steel
- CP#:
- Item#: D5-20TSA-36-09
- Mfr#: D5-20TSA-36-09
- UPC: 697950835143
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Martin triple labyrinth seal is grease filled that offers an additional level of protection from contaminants and water ingress impacting the bearing
- The contact lip seal adds additional level of protection
- CEMA D idlers have sealed for life ball bearings
- CEMA D idlers offers extremely low rolling resistance that allows for lower operating cost
- Patent pending idler end welding allows for protection against belt wear
- 1.06 in solid steel shaft machined to 25 mm at each end
- Martin idlers have exceptionally low TIR runout
- 09-guage wall thickness
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Self aligning idlers are used to assist with belts that may be misaligned due to environmental conditions. Self aligning idlers pivot and attempt to guide the belt back into the center of the troughing idlers. Self aligning idlers can be troughing, return or flat carrying.
Martin Self-Aligner Equal Trougher Idler, Medium/Heavy Duty, D CEMA, 5 in Roll Dia, 20 deg Trough angle, 36 in Belt Width, Sealed Ball Bearing, 13-1/4 in Roller Length, 45 in Distance Between Mounting Holes, 39.44 in Distance Between Roller Ends, Steel
SPECIFICATIONS
| Roller Length | : | 13-1/4 in |
| Belt Width | : | 36 in |
| Material | : | Steel |
| Bearing Type | : | Sealed Ball |
| Type | : | Medium/Heavy Duty |
| Distance Between Mounting Holes | : | 45 in |
| Distance Between Roller Ends | : | 39.44 in |
| CEMA Rating | : | D |
| Roll Diameter | : | 5 in |
| Trough Angle | : | 20 deg |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Specification_Sheet.pdf
