D10B45

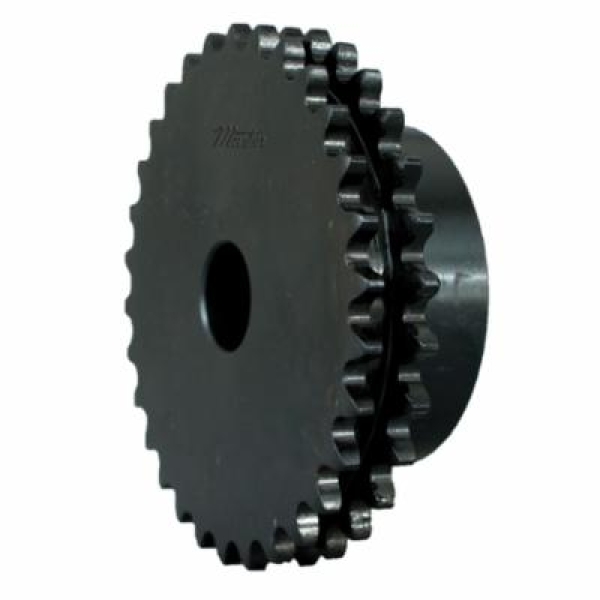

Martin D10B45 Double Strand Metric Solid Stock Bore Type B Single Roller Chain Sprocket, 30 mm Dia Bore, 237.261 mm OD, 10B-2 Chain, 45 Teeth, 15.875 mm Pitch, Steel
- CP#:
- Item#: D10B45
- Mfr#: D10B45
- UPC: 697950399881
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin metric double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
Martin Single Roller Chain Sprocket, Double Strand Metric Solid Stock Bore Type B, 30 mm Bore Dia, 237.261 mm Outside Dia, 10B-2 Chain, 45 Teeth, 15.875 mm Pitch, 227.577 mm, 119.99 mm Hub Dia, 50.013 mm Length Through Bore, Steel
SPECIFICATIONS
| Bore Diameter | : | 30 mm |
| Outside Diameter | : | 237.261 mm |
| Chain Size | : | 10B-2 |
| Number of Teeth | : | 45 |
| Pitch | : | 15.875 mm |
| Material | : | Steel |
| Length Through Bore | : | 50.013 mm |
| Pitch Diameter | : | 227.577 mm |
| Type | : | Double Strand Metric Solid Stock Bore Type B |
| Hub Diameter | : | 119.99 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_12A15_Catalog.pdf
