D100B13

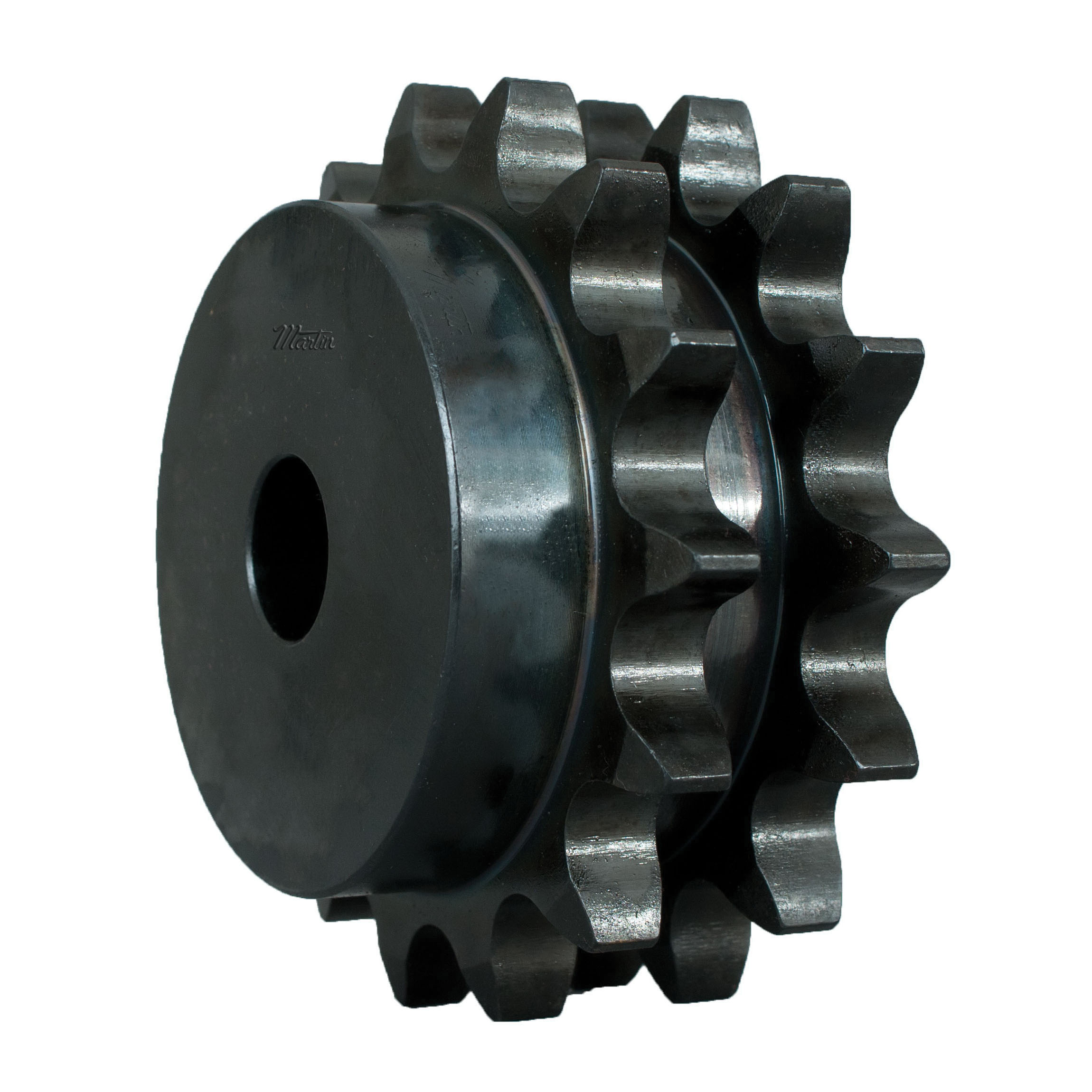

Martin D100B13 Type B Double Strand Solid Reboreable Roller Chain Sprocket, 1-1/8 to 2-1/2 in Dia Bore, 5.821 in OD, #100 Chain, 13 Teeth, 1-1/4 in Pitch, Steel

  • Item#: D100B13
  • Mfr#: D100B13
  • UPC: 697950023953
    • Precise machining and processes ensure consistent finish and high quality
    • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
    • Bores are concentric to pitch line, minimizing run out
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, setscrews and harden teeth are quick alterations that can be made.

Martin Roller Chain Sprocket, Type B Double Strand Solid Reboreable, 1-1/8 to 2-1/2 in Bore, 5.821 in OD, #100 Chain, 13 Teeth, 1-1/4 in Pitch, 5.223 in Pitch Diameter, 3.813 in Diameter Hub, 2-7/8 in Length Through Bore, Steel

SPECIFICATIONS

Bore Diameter      :      1-1/8 to 2-1/2 in
Outside Diameter      :      5.821 in
Chain Size      :      #100
Number of Teeth      :      13
Pitch      :      1-1/4 in
Material      :      Steel
Hub Diameter      :      3.813 in
Type      :      Type B Double Strand Solid Reboreable
Length Through Bore      :      2-7/8 in
Pitch Diameter      :      5.223 in

DOCUMENTS

  • pdf
    Specification Sheet     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
  • video VIDEO LINK https://www.youtube.com/watch?v=fSomOMNB_-Q
