CT5D

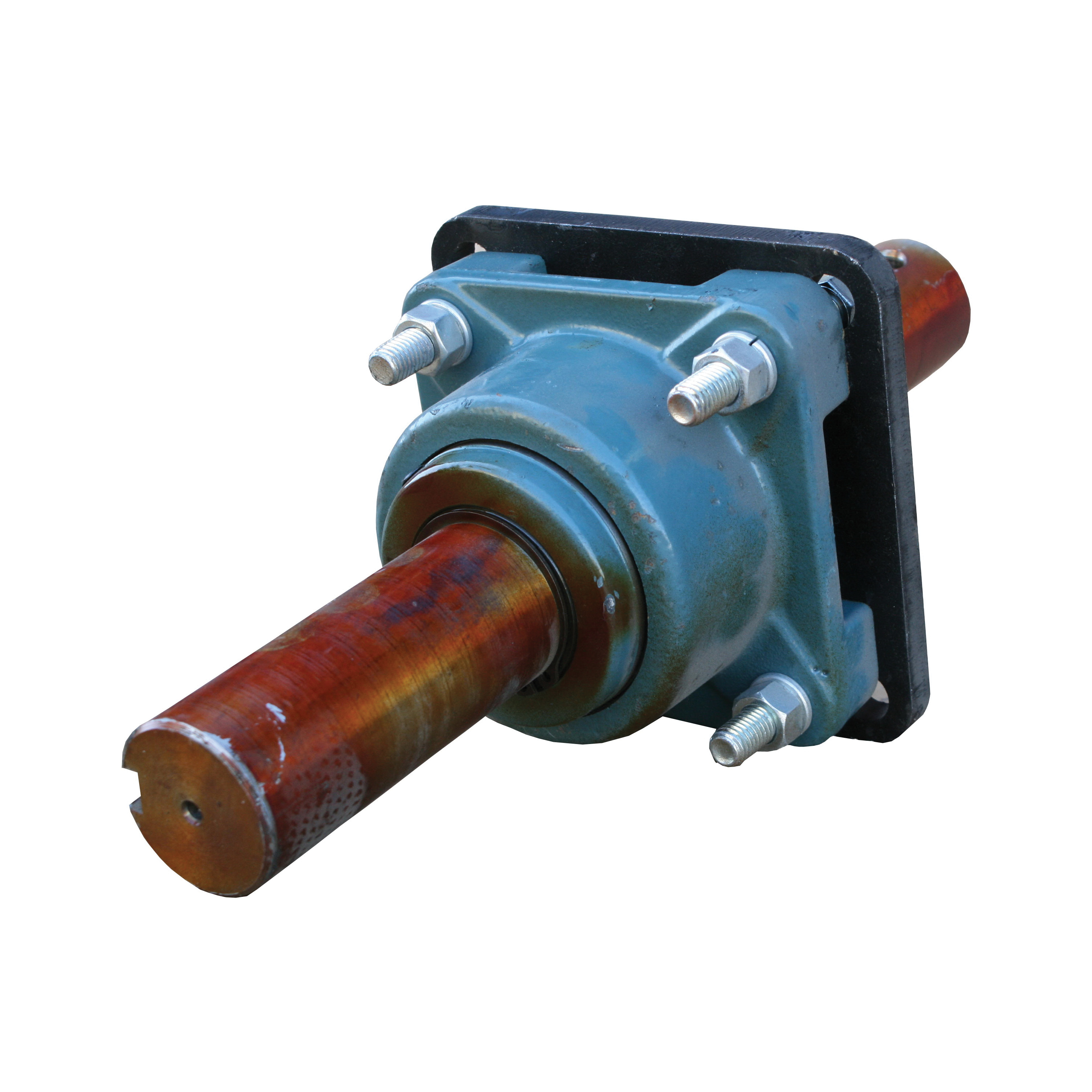

Martin CT5D Non Expansion Square Type E Roller Thrust Bearing Unit With Drive Shaft, 2-7/16 in Dia Bore, 5-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 6-7/8 in OAL/Dia
- CP#:
- Item#: CT5D
- Mfr#: CT5D
- UPC: 697950080895
- Type E or H used to accommodate thrust when screw conveyor drive not used
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Thrust units with drive shafts are most common and economical thrust unit when a screw conveyor type drive is not being used.
Martin Roller Thrust Bearing Unit, Non Expansion Square Type E, Series: CT Series, 2-7/16 in Bore, 5-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 6-7/8 in Overall Length/Diameter, 6-7/8 in Overall Height, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 5-3/8 in |
| Series | : | CT Series |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Overall Height | : | 6-7/8 in |
| Overall Length/Diameter | : | 6-7/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/555/Martin_CSFP2_Catalog.pdf
