CSS4

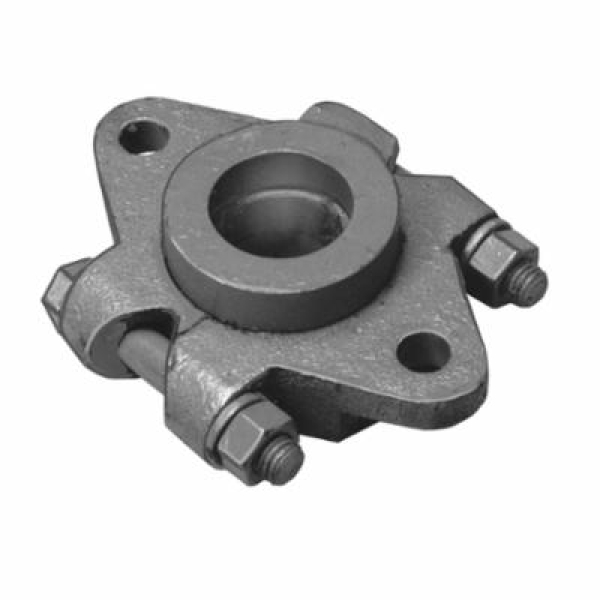

Martin CSS4 Split Gland Seal, For Use With Screw Conveyor, 2 in Dia Shaft, 6-1/4 in Seal Width, 6-1/2 in Seal Height, 2-5/8 in Centerline of Shaft to Centerline of Mounting Bolt Hole, 1/2 in Dia Mounting Bolt, 1-1/4 in THK Seal Housing, Cast Iron
- CP#:
- Item#: CSS4
- Mfr#: CSS4
- UPC: 697950080345
- These seals can be installed inside or outside the end plates
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Split gland compression type seals prevent bulk material leaks, which reduces product loss, contamination and bearing failure. This seal allows for easy replacement and adjustment of packing pressure on the shaft without removing the seal from the conveyor. It can be installed on the inside or outside of the end plates.
Martin Split Gland Seal, For Use With: Screw Conveyor, 2 in Shaft Dia, 6-1/4 in Seal Width, 6-1/2 in Seal Height, 2-5/8 in Centerline of Shaft to Centerline of Mounting Bolt Hole, 1/2 in Mounting Bolt Dia, 1-1/4 in Seal Housing THK, Cast Iron, 6-1/4 in L x 6-1/2 in W
SPECIFICATIONS
| Material | : | Cast Iron |
| Dimensions | : | 6-1/4 in L x 6-1/2 in W |
| Suitable For Use With | : | Screw Conveyor |
| Specifications | : | 2 in Shaft Dia, 6-1/4 in Seal Width, 6-1/2 in Seal Height, 2-5/8 in Centerline of Shaft to Centerline of Mounting Bolt Hole, 1/2 in Mounting Bolt Dia, 1-1/4 in Seal Housing THK |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_CSFP3_Catalog.pdf
