Martin CMD16032X35L4H
Martin

Martin CMD16032X35L4H

loading

CMD16032X35L4H

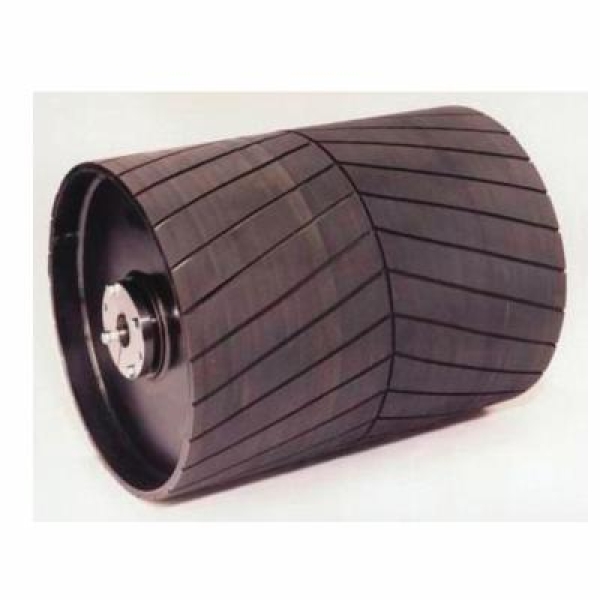

Martin CMD16032X35L4H Mine Duty Drum Pulley, 3-1/2 in Dia Shaft, 16 in OD, 32 in W Face, Steel

  • Item#: CMD16032X35L4H
  • Mfr#: CMD16032X35L4H
  • UPC: 697950460918
    • Stock wing or drum pulleys in dozens of Martin facilities, offering the finest inventory in the industry
    • Several Hub/Bushing systems available from stock
    • Double sub-arc weldments standard on all welded hub design pulleys, integral end disc design drum pulleys available from stock and production
    • Standard Duty, Quarry Duty and Engineered Class pulleys all available from Martin
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin offers mine duty drum pulleys using a minimum 3/8 in rim (up to 20 in diameter), 1/2 in minimum rim on 24 in and larger diameter, 1 in minimum end discs and 3/8 in center discs. Each mine duty drum pulley features a two piece rolled rim, which has been fabricated on either of our flat or custom crowned roll machines. The rims are trimmed and hydraulically seated around the heavy end discs to ensure maximum concentricity. Once the pulley is formed, Martin utilizes a double or triple pass submerged arc weldment to ensure optimum connection of its individual components.

Martin Drum Pulley, Mine Duty, MXT35 Bushing, 16 in Outside Dia, 32 in Face Width, 3-1/2 in Shaft Dia, Steel

SPECIFICATIONS

Shaft Diameter      :      3-1/2 in
Outside Diameter      :      16 in
Face Width      :      32 in
Material      :      Steel
Bushing Type      :      MXT35
Type      :      Mine Duty
