C5120

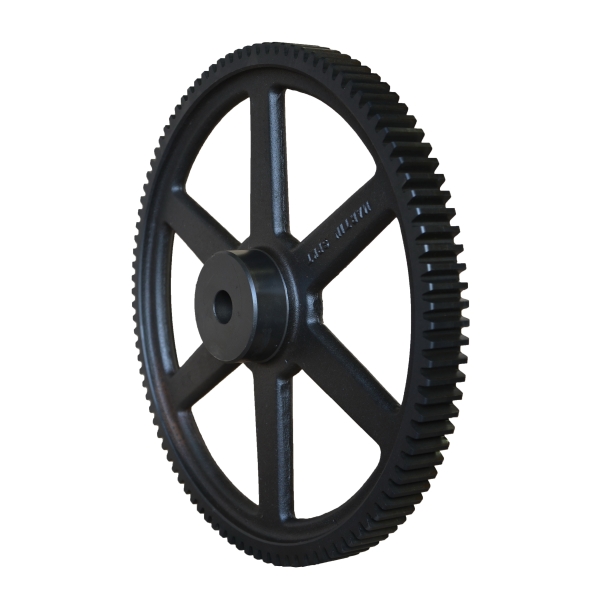

Martin C5120 Reboreable Stock Spur Gear, 5 Diametral Pitch, 14.5 deg Pressure Angle, 1-3/4 in W Face, 120 Teeth, 7.6065 in Dia Pitch, 1-5/16 to 2-13/16 in Dia Bore, Cast Iron
- CP#:
- Item#: C5120
- Mfr#: C5120
- UPC: 697950054827
- Manufactured of high carbon steel material
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Reboreable, 1-5/16 to 2-13/16 in Bore Dia, 24.4 in Outside Dia, 120 Teeth, 5 Diametral Pitch, 7.6065 in, 1-3/4 in Face Width, Type B, 4.7345 in Hub Dia, 1-1/2 in Hub Projection, 3-1/4 in Overall Length, 14.5 deg Pressure Angle, Cast Iron
SPECIFICATIONS
| Hub Diameter | : | 4.7345 in |
| Hub Projection | : | 1-1/2 in |
| Hub Type | : | Type B |
| Outside Diameter | : | 24.4 in |
| Overall Length | : | 3-1/4 in |
| Type | : | Reboreable |
| Diametral Pitch | : | 5 |
| Pressure Angle | : | 14.5 deg |
| Face Width | : | 1-3/4 in |
| Number of Teeth | : | 120 |
| Pitch Diameter | : | 7.6065 in |
| Bore Diameter | : | 1-5/16 to 2-13/16 in |
| Material | : | Cast Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S311_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S311_Specification_Sheet.pdf
