C4-R-42-1

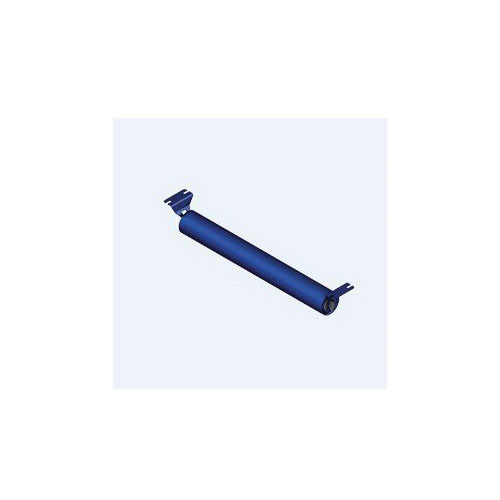

Martin C4-R-42-1 Return Idler, Class C CEMA Rating, 4 in Dia Roll, 42 in W Belt, Steel
- CP#:
- Item#: C4-R-42-09-1
- Mfr#: C4-R-42-1
- UPC: 697950847962
- Manufactured using sealed for life ball bearings for long maintenance free operation
- Ultimate Martin triple labyrinth seal guard bearing protection
- Conform to all CEMA C load and dimensional requirements
- 9 ga tubing exceeds industry wall thickness standards
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- The contact lip seal adds additional level of protection
- Martin CEMA C idlers offer extremely low rolling resistance that allows for lower operating cost
- Roll gap meets NIBA recommendation
- Patent pending idler end welding allows for protection against belt wear
- 0.88 in solid steel shaft machined down to 20 mm at each end
- Martin idlers have exceptionally low TIR runout
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Steel return idlers are used to support the belt on the return side when the conveyed material is not sticky, corrosive or excessively abrasive. These rollers are available with a variety of coatings suitable for the specific application.
Martin Return Idler, Class C CEMA, 4 in Roll Diameter, 42 in Belt Width, Ball Bearing, 45.38 in Roller Length, 53 in Overall Width, 51 in Distance Between Mounting Holes, Steel
SPECIFICATIONS
| Roller Length | : | 45.38 in |
| Belt Width | : | 42 in |
| Material | : | Steel |
| Distance Between Mounting Holes | : | 51 in |
| Overall Width | : | 53 in |
| Bearing Type | : | Ball |
| CEMA Rating | : | Class C |
| Roll Diameter | : | 4 in |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4R18091_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4R18091_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_CDF1_Catalog.pdf -
VIDEO LINK
https://www.youtube.com/watch?v=Kfb2wz2FSyE
