- Martin C4-20T-18
C4-20T-18

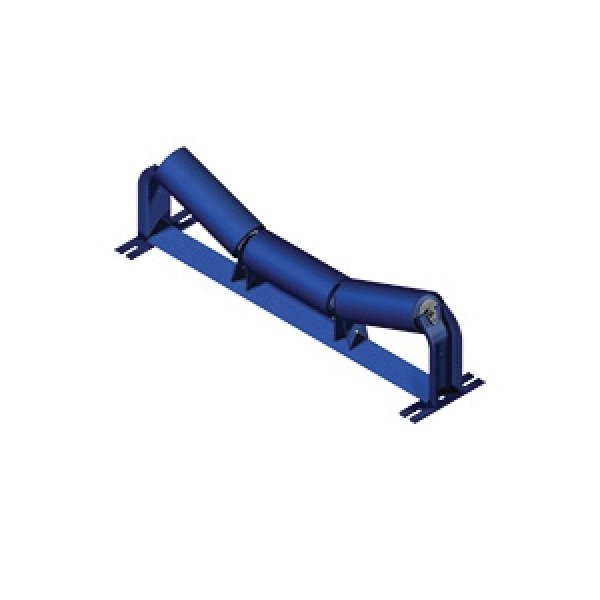

Martin C4-20T-18 Medium Duty Equal Troughing Idler, C CEMA Rating, 4 in Dia Roll, 20 deg Trough Angle, 18 in W Belt, Steel
- CP#:
- Item#: C4-20T-18-09
- Mfr#: C4-20T-18
- UPC: 697950819877
- External shield deters impurities from entering the bearing housing
- Flinger design removes contaminates away from the bearing housing by centrifugal force
- Martin triple labyrinth seal is grease filled that offers an additional level of protection from contaminants and water ingress impacting the bearing
- The contact lip seal adds additional level of protection
- CEMA C idlers have sealed for life ball bearings
- CEMA C idlers offers extremely low rolling resistance that allows for lower operating cost
- Patent pending idler end welding allows for protection against belt wear
- 0.88 in solid steel shaft machined down to 20 mm at each end
- Martin idlers have exceptionally low TIR runout
- 09-guage wall thickness
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Equal troughing idlers are designed to support the belt and transport material on the carrying side of the belt. Troughing idlers typically consist of three rollers with wing rolls at 20, 35 or 45 deg inclinations. Martin idlers are designed to meet or exceed all Conveyor Equipment Manufacturers Association(CEMA) load standards.
Martin Equal Troughing Idler, Medium Duty, C CEMA, 4 in Roll Dia, 20 deg Trough angle, 18 in Belt Width, Sealed Ball Bearing, 6-3/4 in Roller Length, 27 in Distance Between Mounting Holes, 20.97 in Distance Between Roller Ends, Steel
SPECIFICATIONS
| Roller Length | : | 6-3/4 in |
| Belt Width | : | 18 in |
| Material | : | Steel |
| Bearing Type | : | Sealed Ball |
| Type | : | Medium Duty |
| Distance Between Mounting Holes | : | 27 in |
| Distance Between Roller Ends | : | 20.97 in |
| CEMA Rating | : | C |
| Roll Diameter | : | 4 in |
| Trough Angle | : | 20 deg |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_C4_20T_18_09_Specification_Sheet.pdf
