BK32 7/8

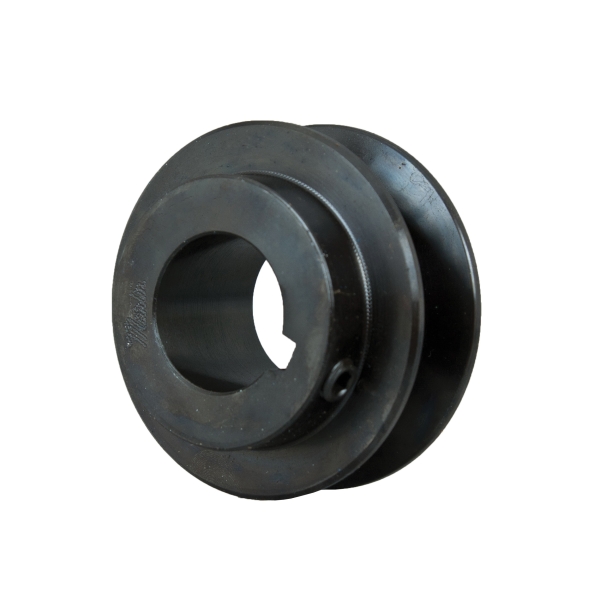

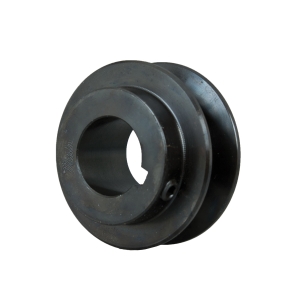

Martin BK32 7/8 BK Series Bored-to-Size Type B Web FHP Sheave, 7/8 in Finished Bore, 3.35 in OD, 1 Groove, 2.6 in (A/4L)/3 in (3L) Dia Pitch, 13/16 in W Face
- CP#:
- Item#: BK32 7/8
- Mfr#: BK32 7/8
- UPC: 697950226927
- Statically balanced
- Tolerances adhere to industry guidelines
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
FHP sheaves (fractional horsepower) are light duty sheaves that utilize "H" bushings or have a finished bore. They are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin fractional horsepower sheaves come in both single or double groove designs and all have precision machined grooves.
Martin FHP Sheave, Bored-to-Size Type B Web, Series: BK Series, Finished Bore, 7/8 in Bore Dia, 3.35 in Outside Dia, 2.6 in (A/4L)/3 in (3L), 1 Groove, 13/16 in Face Width, 1-7/8 in Hub Dia, 0.406 in Hub Projection, H Bushing, 1-7/32 in Overall Length, For Use With: A/3L/4L Cross Section Belts, Steel
SPECIFICATIONS
| Bushing Type | : | H |
| Series | : | BK Series |
| Overall Length | : | 1-7/32 in |
| Material | : | Steel |
| Bore Diameter | : | 7/8 in |
| Bore Type | : | Finished |
| Outside Diameter | : | 3.35 in |
| Number of Grooves | : | 1 |
| Pitch Diameter | : | 2.6 in (A/4L)/3 in (3L) |
| Face Width | : | 13/16 in |
| Type | : | Bored-to-Size Type B Web |
| Suitable For Use With | : | A/3L/4L Cross Section Belts |
| Hub Diameter | : | 1-7/8 in |
| Hub Projection | : | 0.406 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Specification_Sheet.pdf
