- Martin B816-4
B816-4

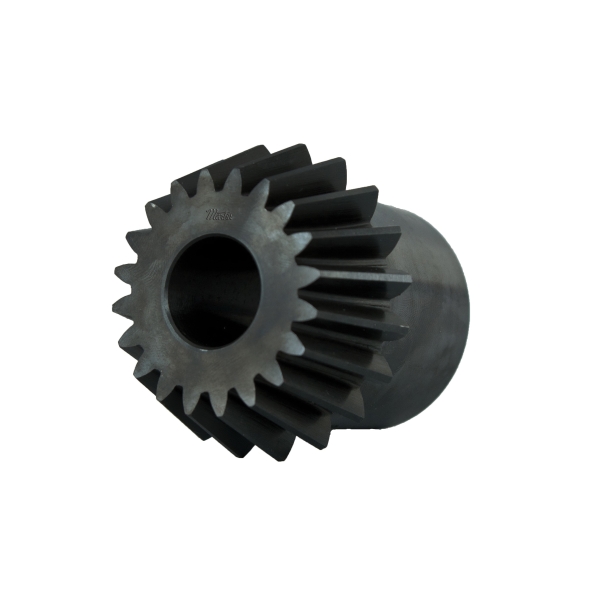

Martin B816-4 Plain Reborable Bevel Gear With Steel Pinion, Bevel Gear, 8 Diametral Pitch, 20 deg Pressure Angle, 16 Teeth, 2 in Dia Pitch, 0.84 in W Face, 0.875 to 1.001 in Dia Bore, Steel
- CP#:
- Item#: B816-4
- Mfr#: B816-4
- UPC: 697950052717
- Precise machining and processes ensure consistent finish and high quality
- AGMA 6 to 8 commercial class gear
- Right angle drives with varied ratios
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Bevel gears are used as right angle drives where high efficiency is required. They are carried in stock as 1:1 to 6:1 ratios. Bevel gears are cut with the long and short addendum system and 20 deg pressure angle to compensate for tooth undercut in gears and pinions having low numbers of teeth. Most all of Martin bevel gears are cut with the coniflex tooth form to allow for a slight misalignment at assembly and during operation. Gears should be mounted at the correct distance from the core of apex center with thrust bearings being used in back of hubs to absorb the backward thrust created in this type of gearing.
Martin Bevel Gear, Plain Reborable, Bevel Gear, 0.875 to 1.001 in Bore, 2.345 in OD, 4 :1 Gear Ratio, 16 Teeth, 8 Diametral Pitch, 2 in Pitch Diameter, 0.84 in Face Width, No Screws Hub, 1-7/8 in Diameter Hub, 1.234 in Hub Projection, 2-3/32 in Overall Length, 20 deg Pressure Angle, Steel
SPECIFICATIONS
| Gear Ratio | : | 4 :1 |
| Hub Diameter | : | 1-7/8 in |
| Hub Projection | : | 1.234 in |
| Hub Type | : | No Screws |
| Outside Diameter | : | 2.345 in |
| Overall Length | : | 2-3/32 in |
| Type | : | Plain Reborable |
| Gear Type | : | Bevel |
| Diametral Pitch | : | 8 |
| Pressure Angle | : | 20 deg |
| Number of Teeth | : | 16 |
| Pitch Diameter | : | 2 in |
| Face Width | : | 0.84 in |
| Bore Diameter | : | 0.875 to 1.001 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_B315_2_Catalog.pdf
