9S412-R

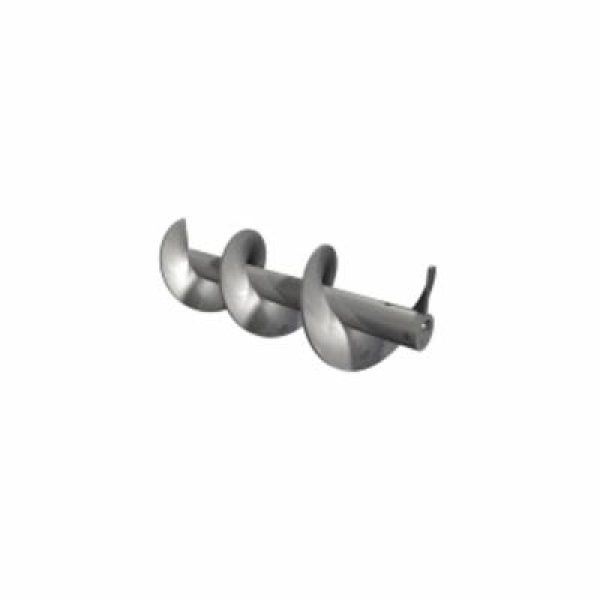

Martin 9S412-R Conveyor Screw With Buttweld Flighting, 9 in Dia x 118 in L, Steel

  • Item#: 9S412-R
  • Mfr#: 9S412-R
  • UPC: 697950127248
    • Pitch can be varied on a MTO basis
    • Left Hand available
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The letter "S" indicates screw conveyor with butt weld flighting. The figures to the left of the letters indicate the nominal outside diameter of the conveyor in inches. The first figure following the letters is twice the diameter of the coupling in 1/64 in. Right hand flight helix wraps around the pipe in a clockwise direction.

Martin Conveyor Screw, 9 in Dia, 118 in Length, Steel, Right Hand Sectional Flight Type

SPECIFICATIONS

Material      :      Steel
Flight Type      :      Right Hand Sectional
Diameter      :      9 in
Length      :      118 in

DOCUMENTS

  • pdf
    Specification Sheet
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10CH2203_Specification_Sheet.pdf
  • pdf
    Catalog
    https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_10H306-R_Catalog.pdf
